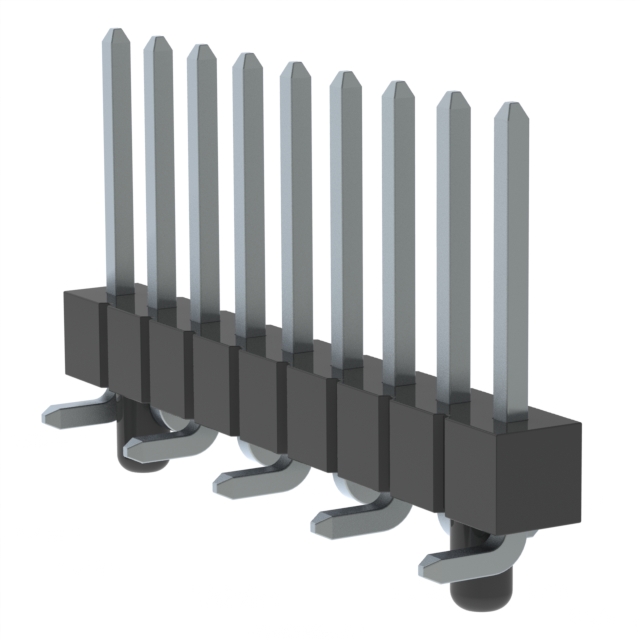

TSM-109-02-T-SV-A-P

Active

Samtec Inc.

CONN HEADER SMD 9POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-109-02-T-SV-A-P

Active

Samtec Inc.

CONN HEADER SMD 9POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-109-02-T-SV-A-P

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-109 Series

...

Part	Shrouding	Contact Material	Features	Contact Shape	Pitch - Mating	Pitch - Mating	Mounting Type	Termination	Contact Type	Style	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Insulation Material	Insulation Color	Material Flammability Rating	Contact Finish - Mating	Number of Positions Loaded	Contact Finish - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded
Samtec Inc. TSM-109-02-L-SH-A-TR	Unshrouded	Phosphor Bronze	Board Guide	Square	0.1 in	2.54 mm	Surface Mount Right Angle	Solder	Male Pin	Board to Board Cable	9	10 çin	0.25 çm	8.13 mm	0.32 in	Push-Pull	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Gold	All	Tin	Header	-55 °C	125 °C	3.05 mm	0.12 in	1
Samtec Inc. TSM-109-02-T-DH-A	Unshrouded	Phosphor Bronze	Board Guide	Square	0.1 in	2.54 mm	Surface Mount Right Angle	Solder	Male Pin	Board to Board Cable	18			8.13 mm	0.32 in	Push-Pull	Liquid Crystal Polymer (LCP)	Black	UL94 V-0		All	Tin	Header	-55 °C	105 ░C	6.1 mm	0.24 in	2	2.54 mm	0.1 in
Samtec Inc. TSM-109-03-S-DV-A-P-TR	Unshrouded	Phosphor Bronze	Board Guide Pick and Place	Square	0.1 in	2.54 mm	Surface Mount	Solder	Male Pin	Board to Board Cable	18	30 Áin	0.76 Ám	10.67 mm	0.42 in	Push-Pull	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Gold	All	Tin	Cuttable Header	-55 °C	125 °C	2.54 mm	0.1 in	2	2.54 mm	0.1 in
Samtec Inc. TSM-109-02-S-SV-P	Unshrouded	Phosphor Bronze	Pick and Place	Square	0.1 in	2.54 mm	Surface Mount	Solder	Male Pin	Board to Board Cable	9	30 Áin	0.76 Ám	8.13 mm	0.32 in	Push-Pull	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Gold	All	Tin	Cuttable Header	-55 °C	125 °C	2.54 mm	0.1 in	1
Samtec Inc. TSM-109-02-T-SV-A-P	Unshrouded	Phosphor Bronze	Board Guide Pick and Place	Square	0.1 in	2.54 mm	Surface Mount	Solder	Male Pin	Board to Board Cable	9			8.13 mm	0.32 in	Push-Pull	Liquid Crystal Polymer (LCP)	Black	UL94 V-0		All	Tin	Cuttable Header	-55 °C	105 ░C	2.54 mm	0.1 in	1
Samtec Inc. TSM-109-01-F-DV-P	Unshrouded	Phosphor Bronze	Pick and Place	Square	0.1 in	2.54 mm	Surface Mount	Solder	Male Pin	Board to Board Cable	18	3 µin	0.076 µm	5.84 mm		Push-Pull	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Gold	All	Tin	Cuttable Header	-55 °C	125 °C	2.54 mm	0.1 in	2	2.54 mm	0.1 in	0.23 in
Samtec Inc. TSM-109-01-L-DH-P-TR	Unshrouded	Phosphor Bronze	Pick and Place	Square	0.1 in	2.54 mm	Surface Mount Right Angle	Solder	Male Pin	Board to Board Cable	18	10 çin	0.25 çm	5.84 mm		Push-Pull	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Gold	All	Tin	Header	-55 °C	125 °C	6.1 mm	0.24 in	2	2.54 mm	0.1 in	0.23 in
Samtec Inc. TSM-109-01-S-SV-008	Unshrouded	Phosphor Bronze		Square	0.1 in	2.54 mm	Surface Mount	Solder	Male Pin	Board to Board Cable	9	30 Áin	0.76 Ám	5.84 mm		Push-Pull	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Gold		Tin	Cuttable Header	-55 °C	125 °C	2.54 mm	0.1 in	1			0.23 in	8
Samtec Inc. TSM-109-01-T-DH-A	Unshrouded	Phosphor Bronze	Board Guide	Square	0.1 in	2.54 mm	Surface Mount Right Angle	Solder	Male Pin	Board to Board Cable	18			5.84 mm		Push-Pull	Liquid Crystal Polymer (LCP)	Black	UL94 V-0		All	Tin	Header	-55 °C	105 ░C	6.1 mm	0.24 in	2	2.54 mm	0.1 in	0.23 in
Samtec Inc. TSM-109-01-L-SV-007	Unshrouded	Phosphor Bronze		Square	0.1 in	2.54 mm	Surface Mount	Solder	Male Pin	Board to Board Cable	9	10 çin	0.25 çm	5.84 mm		Push-Pull	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	Gold		Tin	Cuttable Header	-55 °C	125 °C	2.54 mm	0.1 in	1			0.23 in	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TSM-109 Series

Connector Header Surface Mount 9 position 0.100" (2.54mm)
