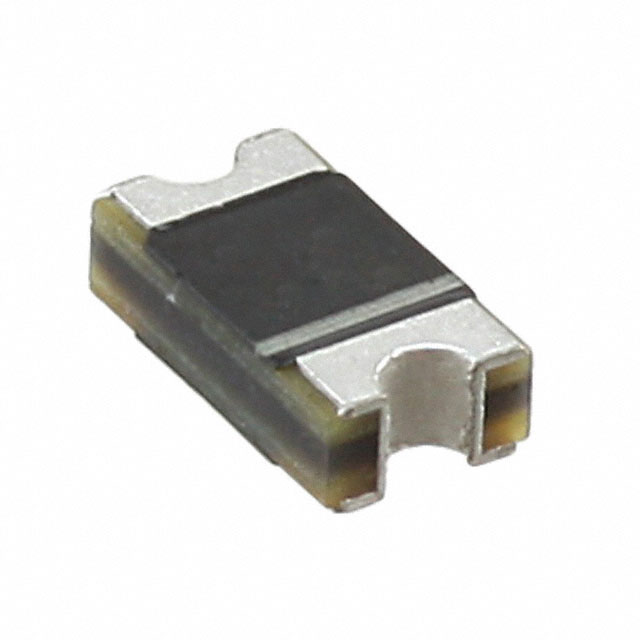

ACDBN120-HF

Active

Comchip Technology

DIODE SCHOTTKY 20V 1A 1206

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 20V 1A 1206

Technical Specifications

Parameters and characteristics for this part

Specification	ACDBN120-HF

Capacitance @ Vr, F	110 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	200 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	2-SMD
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	1206
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	20 V
Voltage - Forward (Vf) (Max) @ If	320 mV

DIODE SCHOTTKY 20V 1A 1206

Part	Voltage - Forward (Vf) (Max) @ If	Speed	Mounting Type	Grade	Current - Average Rectified (Io)	Qualification	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Package / Case	Capacitance @ Vr, F	Technology
Comchip Technology ACDBN120-HF	320 mV	200 mA, 500 ns	Surface Mount	Automotive	1 A	AEC-Q101	200 µA	20 V	1206	-55 °C	125 °C	2-SMD	110 pF	Schottky

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 20 V 1A Surface Mount 1206

Technical documentation and resources

No documents available
