AH266Z4-AG1
ActiveDiodes Inc
HALL EFFECT SENSOR, -7MT MIN, 7MT MAX, 400MA, PLASTIC/EPOXY, RECTANGULAR, 4 PIN, THROUGH HOLE MOUNT, GREEN, TO-94, SIP-4
Deep-Dive with AI
Search across all available documentation for this part.
AH266Z4-AG1
ActiveDiodes Inc
HALL EFFECT SENSOR, -7MT MIN, 7MT MAX, 400MA, PLASTIC/EPOXY, RECTANGULAR, 4 PIN, THROUGH HOLE MOUNT, GREEN, TO-94, SIP-4
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AH266Z4-AG1 |
|---|---|
| Current - Output (Max) [Max] | 400 mA |
| Current - Supply (Max) [Max] | 10 mA |
| Features | Temperature Compensated |
| Function | Latch |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -20 °C |
| Output Type | Open Collector |

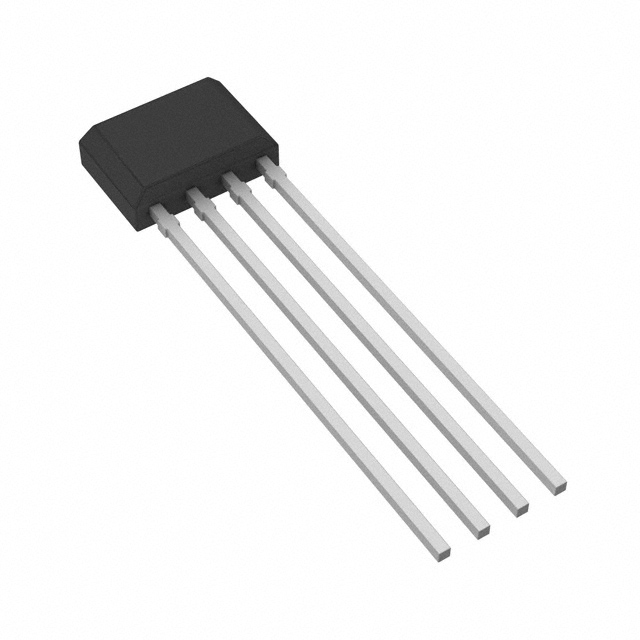

| Package / Case | 4-SSIP |
| Polarization | South Pole |
| Sensing Range | -7 mT, 7 mT |
| Supplier Device Package | TO-94 |
| Technology | Hall Effect |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.40 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.31 | |||
| 5000 | $ 0.27 | |||
Description
General part information
AH266 (Not Recommended for New Design (NRND)) Series
