1-770874-1

Active

TE Connectivity AMP Connectors

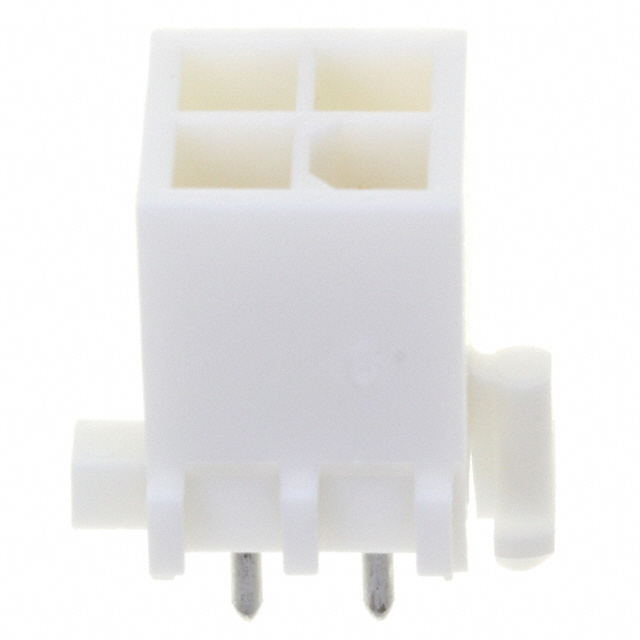

CONN HEADER VERT 4POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 4.14MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.163" (4.14mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1-770874-1	770874 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Tin-Lead, Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER VERT 4POS 4.14MM

Part	Number of Rows	Shrouding	Connector Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Color	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Applications	Contact Shape	Contact Type	Contact Finish - Mating	Termination	Voltage Rating	Number of Positions	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Material	Contact Finish - Post	Insulation Material
TE Connectivity AMP Connectors 770874-1	2	Shrouded - 4 Wall	Header	All	85 °C	-20 C	Locking Ramp	4.14 mm	0.163 in	White	UL94 V-0	4.45 mm	0.175 in	4.14 mm	0.163 in	General Purpose	Circular	Male Pin	Tin-Lead	Solder	600 VAC	4	Varies by Wire Gauge	150 Áin	3.81 Ám	Through Hole	13.5 mm	0.531 in	150 Áin	3.81 Ám	Board to Cable/Wire	Brass	Tin-Lead	Nylon, Polyamide (PA)
TE Connectivity AMP Connectors 1-770874-1	2	Shrouded - 4 Wall	Header	All	105 ░C	-20 C	Locking Ramp	4.14 mm	0.163 in	White	UL94 V-0	4.45 mm	0.175 in	4.14 mm	0.163 in	General Purpose	Circular	Male Pin	Gold	Solder	600 VAC	4	Varies by Wire Gauge	150 Áin	3.81 Ám	Through Hole	13.5 mm	0.531 in	30 Áin	0.76 Ám	Board to Cable/Wire	Brass	Tin	Nylon, Polyamide (PA)
