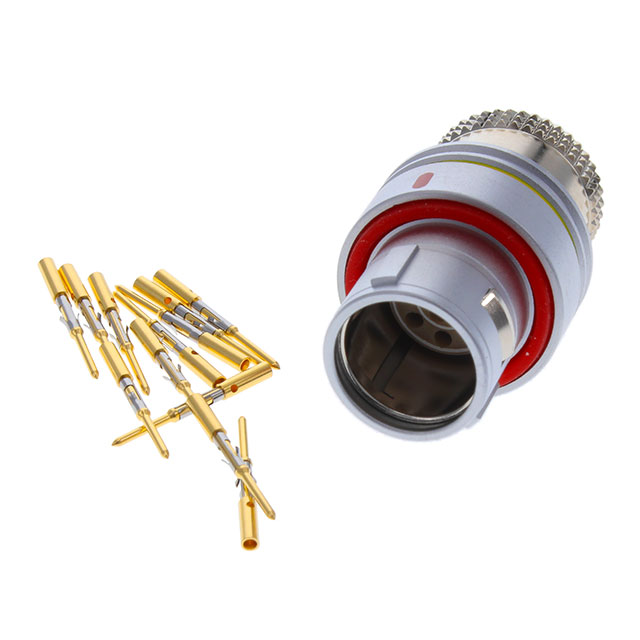

FGP.2F.312.CLC

Active

LEMO

CONN PLUG MALE 12POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 12POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug, Male Pins Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FGP.2F.312.CLC	FGP.2F Series

Applications	Aerospace	Aerospace
Cable Opening [custom]	14 mm	14 mm
Cable Opening [custom]	0.551 in	0.551 in
Color	Silver	Silver, Gray
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	12	8 - 19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 - -15 °C
Orientation	P	P
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Nickel
Shell Material	Brass	Brass, Aluminum Alloy
Shell Size - Insert	312	308 - 319
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG MALE 12POS GOLD CRIMP

Part	Contact Finish - Mating	Current Rating (Amps)	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Shell Size - Insert	Connector Type	Insert Material	Ingress Protection	Fastening Type	Shell Finish	Mounting Type	Orientation	Color	Number of Positions	Material Flammability Rating	Shell Material	Shielding	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material
LEMO FGP.2F.312.CLC	Gold	7 A	Metal	14 mm	0.551 in	1 µm	39.4 µin	Crimp	312	Male Pins, Plug	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Push-Pull	Chrome	Free Hanging (In-Line)	P	Silver	12	UL94 V-0	Brass	Shielded	Aerospace	-55 °C	200 °C	Brass
LEMO FGP.2F.312.XLC	Gold	7 A	Metal	14 mm	0.551 in	1 µm	39.4 µin	Crimp	312	Male Pins, Plug	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Push-Pull	Nickel	Free Hanging (In-Line)	P	Gray	12	UL94 V-0	Aluminum Alloy	Shielded	Aerospace	-15 °C	200 °C	Brass
LEMO FGP.2F.308.XLC	Gold	10 A	Metal	14 mm	0.551 in	1 µm	39.4 µin	Crimp	308	Male Pins, Plug	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Push-Pull	Nickel	Free Hanging (In-Line)	P	Gray	8	UL94 V-0	Aluminum Alloy	Shielded	Aerospace	-15 °C	200 °C	Brass
LEMO FGP.2F.319.XLC	Gold	5 A	Metal	14 mm	0.551 in	1 µm	39.4 µin	Crimp	319	Male Pins, Plug	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Push-Pull	Nickel	Free Hanging (In-Line)	P	Gray	19	UL94 V-0	Aluminum Alloy	Shielded	Aerospace	-15 °C	200 °C	Brass
