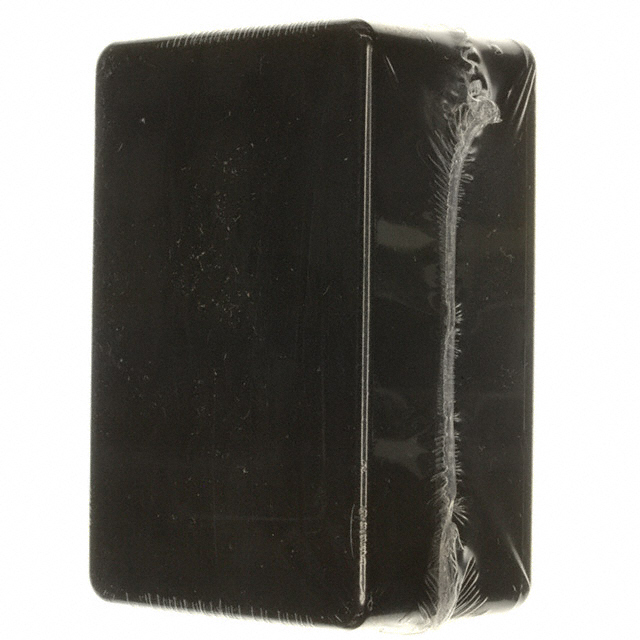

1591LSBK

Active

Hammond Manufacturing

BOX PLASTIC BLK 3.35"L X 2.21"W

Deep-Dive with AI

Search across all available documentation for this part.

1591LSBK

Active

Hammond Manufacturing

BOX PLASTIC BLK 3.35"L X 2.21"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1591LSBK

Area (L x W)	47.6 cm˛
Area (L x W)	7.38 in˛
Color	Black
Container Type	Box
Design	Cover Included
Features	Card Guides
Height [z]	1.535 in
Height [z]	38.99 mm
Material	ABS
Ratings	IP54
Size / Dimension [x]	3.346 in
Size / Dimension [x]	85 mm
Size / Dimension [y]	2.205 in
Size / Dimension [y]	56 mm
Thickness	0.079 in
Thickness	2.01 mm
Weight	0.119 lb
Weight	53.98 g

1591 Series

...

Part	Height [z]	Height [z]	Material	Features	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Thickness	Thickness	Weight	Weight	Container Type	Area (L x W)	Area (L x W)	Design	Material Flammability Rating	Area (L x W)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type	For Use With/Related Products
Hammond Manufacturing 1591ASGY	0.977 in	24.82 mm	ABS	Card Guides	IP54	1.969 in	3.937 in	100 mm	50 mm	Gray	0.079 in	2.01 mm	0.08 lb	36.29 g	Box	7.75 in˛	50 cm˛	Cover Included
Hammond Manufacturing 1591XXFBK	2.5 in	63.5 mm	ABS	Flame Retardant PCB Supports	IP54	5.906 "	8.701 in	221.01 mm	150.01 mm	Black	0.124 in	3.15 mm			Box	51.4 in˛	332 cm˛	Cover Included	UL94 V-0
Hammond Manufacturing 1591TF2SGY	2.371 in	60.22 mm	ABS	Card Guides Mounting Flange	IP54					Gray	0.079 in	2.01 mm	0.27 lb	122.47 g	Box	14.9 in˛	96 cm˛	Cover Included
Hammond Manufacturing 1591HBK	1.141 in	28.98 mm	ABS	Card Guides Flame Retardant	IP54	2.787 in	6.524 in	165.71 mm	70.79 mm	Black	0.079 in	2.01 mm	0.122 lb	55.34 g	Box	18.1 in²	117 cm²	Cover Included	UL94 V-0
Hammond Manufacturing 1591TFLGY	2.311 in	58.7 mm	ABS	Card Guides Flame Retardant Mounting Flange	IP54					Gray	0.079 in	2.01 mm	0.284 lb	128.82 g	Box	14.9 in˛	96 cm˛	Cover Included	UL94 V-0
Hammond Manufacturing 1591XXBFLBK	1.289 "	32.74 mm	ABS	Flame Retardant Mounting Flange PCB Supports	IP54	2.493 in	4.481 in	113.82 mm	63.32 mm	Black	0.079 in	2.01 mm	0.14 lb	63.5 g	Box			Cover Included	UL94 V-0
Hammond Manufacturing 1591LSBK	1.535 in	38.99 mm	ABS	Card Guides	IP54	2.205 in	3.346 in	85 mm		Black	0.079 in	2.01 mm	0.119 lb	53.98 g	Box		47.6 cm˛	Cover Included		7.38 in˛	56 mm
Hammond Manufacturing 1591F1BK-10			Plastic ABS	Flame Retardant		2.2 in	1 in	25.4 mm	55.88 mm	Black												0.1 "	2.54 mm	Flange Kit	1591 A B C H L Series
Hammond Manufacturing 1591VF2BK	3.759 in	95.48 mm	ABS	Card Guides Flame Retardant Mounting Flange	IP54	4.724 in	4.695 in	119.25 mm	119.99 mm	Black	0.079 in	2.01 mm	0.49 lb	222.26 g	Box	22.1 in˛	143 cm˛	Cover Included	UL94 V-0
Hammond Manufacturing 1591SC			Plastic							Clear														Cover Lid	1591S Series

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.39
		10	$ 4.58
		100	$ 3.78
		1000	$ 3.59

Description

General part information

1591 Series

Box ABS Black Cover Included 3.346" L x 2.205" W (85.00mm x 56.00mm) X 1.535" (38.99mm)
