SMI30AN6RYQ

Active

BANNER ENGINEERING

SMI30 SERIES: RECEIVER - FREQUEN

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SMI30 SERIES: RECEIVER - FREQUEN

Technical Specifications

Parameters and characteristics for this part

Part	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Sensing Method	Ingress Protection	Sensing Distance	Sensing Distance	Response Time	Light Source
BANNER ENGINEERING SMI30AN6RYQ	Connector	30 VDC	10 VDC	-40 °C	70 °C	NPN - Light-ON	Through-Beam	NEMA 6P IEC IP67	60 m	196.85 ft	10 ms	Infrared

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 213.00
Newark	Each	1	$ 213.00

General part information

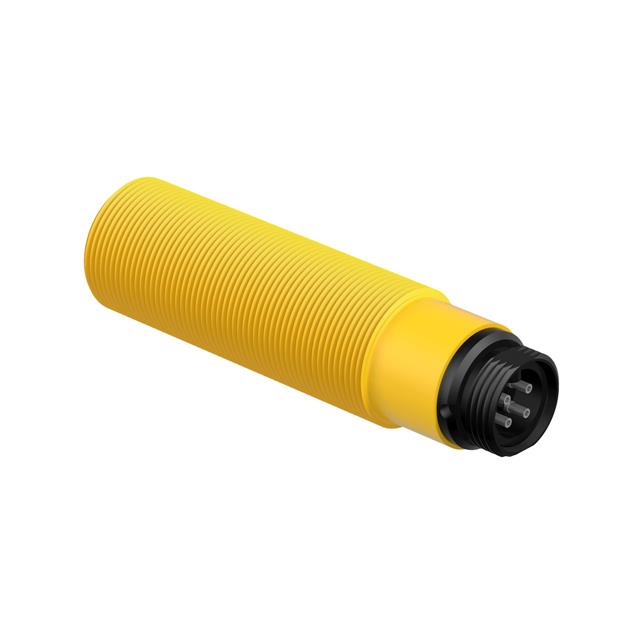

Through-Beam Optical Sensor 196.85' (60m) NPN - Light-ON

Technical documentation and resources
