134021-1

Active

TE Connectivity AMP Connectors

CONN RING CIRC 16AWG M5 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 16AWG M5 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	134021-1

Color	Blue, Blue Stripe
Contact Finish	Tin
Contact Material	Copper
Features	Insulation Restriction
Insulation	Insulated
Insulation Diameter [Max] [diameter]	3.3 mm
Insulation Diameter [Max] [diameter]	0.13 "
Insulation Diameter [Min] [diameter]	0.063 "
Insulation Diameter [Min] [diameter]	1.6 mm
Length - Overall [x]	1.145 in
Length - Overall [x]	29.08 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	M5 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Thickness	0.79 mm
Width - Outer Edges [y]	11.91 mm
Width - Outer Edges [y]	0.469 in
Wire Gauge	16 AWG

CONN RING CIRC 16AWG M5 CRIMP

Part	Color	Material - Insulation	Stud/Tab Size	Thickness	Thickness	Insulation	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Features	Length - Overall [x]	Length - Overall [x]	Contact Material	Contact Finish	Wire Gauge	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Termination
TE Connectivity AMP Connectors 134021-1	Blue, Blue Stripe	Nylon, Polyamide (PA)	M5 Stud	0.031 in	0.79 mm	Insulated	0.063 "	3.3 mm	1.6 mm	0.13 "	Insulation Restriction	1.145 in	29.08 mm	Copper	Tin	16 AWG	Free Hanging (In-Line)	11.91 mm	0.469 in	Circular	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

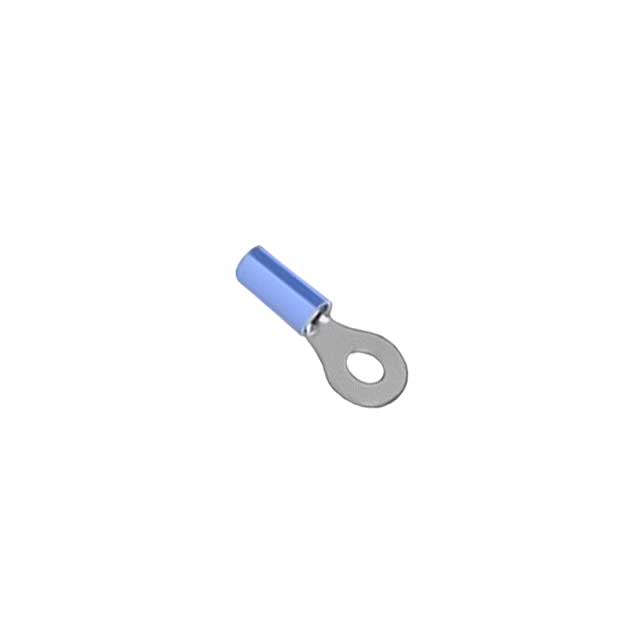

Ring Terminal Connector M5 Stud Circular 16 AWG Crimp
