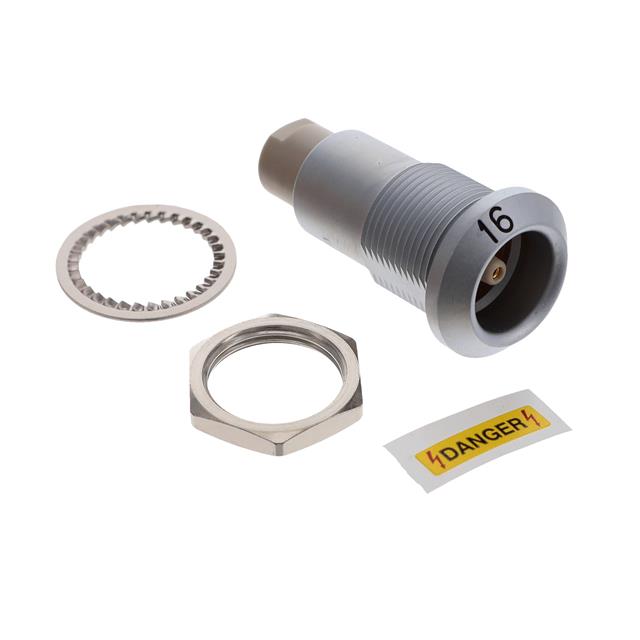

HGP.1Y.416.CLL37

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HGP.1Y.416.CLL37

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Beryllium Copper
Current Rating (Amps)	6 A
Fastening Type	Push-Pull
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	1
Operating Temperature [Max]	230 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	416

CONN RCPT FMALE 1P GOLD SLDR CUP

Part	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Contact Material	Color	Connector Type	Shell Finish	Contact Finish - Mating	Shell Size - Insert	Mounting Feature	Shell Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Insert Material
LEMO HGP.1Y.416.CLL37	Push-Pull	78.7 µin	2 µm	Metal	Beryllium Copper	Silver	Receptacle, Female Sockets	Chrome	Gold	416	Bulkhead - Rear Side Nut	Brass	6 A	230 °C	-55 °C	1	Polyetheretherketone (PEEK)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 190.09

General part information

1 Position Circular Connector Receptacle, Female Sockets Solder Cup
