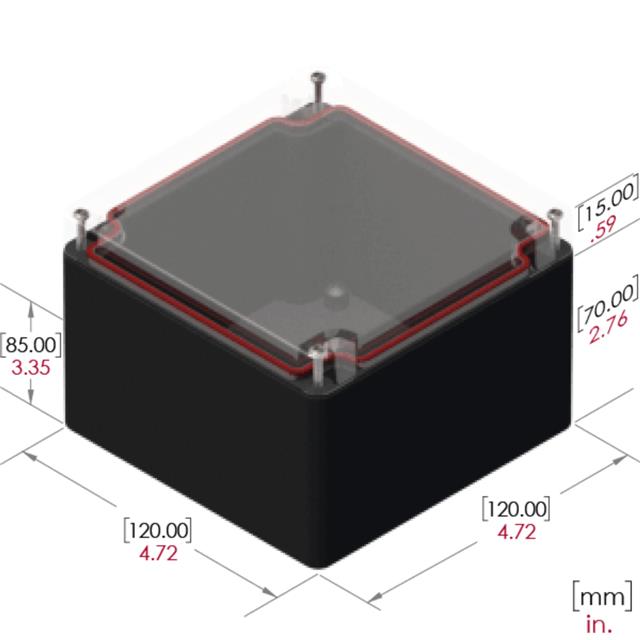

RB55P06C28B

Active

Serpac

BOX PLASTIC BLK/CLR

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC BLK/CLR

Technical Specifications

Parameters and characteristics for this part

Specification	RB55P06C28B

Area (L x W)	144 cm²
Area (L x W)	22.3 in²
Color	Black, Clear Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	3.35 in
Height [z]	85.09 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Thickness	0.12 in
Thickness	3.05 mm

Part	Design	Container Type	Thickness	Thickness	Material Flammability Rating	Ratings	Area (L x W)	Area (L x W)	Color	Height [z]	Height [z]	Material	Height [diameter]	Height [diameter]	Area (L x W)
Serpac RB55P06C28C	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Clear	3.35 in	85.09 mm	Plastic Polycarbonate
Serpac RB55P06C10C	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Clear			Plastic Polycarbonate	1.59 in	40.39 mm
Serpac RB55P06C28B	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Black Clear Cover/Door	3.35 in	85.09 mm	Plastic Polycarbonate
Serpac RB55P06C10B	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Black Clear Cover/Door			Plastic Polycarbonate	1.59 in	40.39 mm
Serpac RB55P06C28G	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Clear Cover/Door Gray	3.35 in	85.09 mm	Plastic Polycarbonate
Serpac RB55P06C16C	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	22.3 in˛		Clear	2.17 in	55.12 mm	Plastic Polycarbonate			144 cm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Black, Clear Cover/Door Cover Included X 3.350" (85.09mm)

Technical documentation and resources

No documents available
