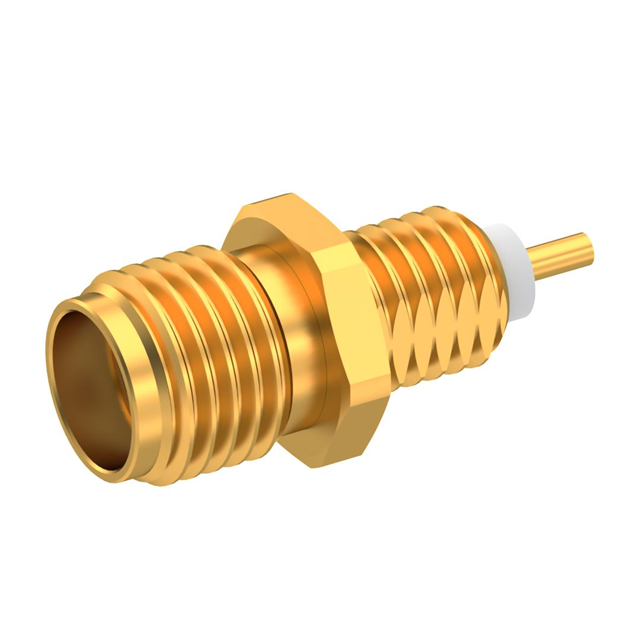

R125555500
ActiveRadiall USA, Inc.
SMA / JACK RECEPTACLE WITH CYLIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R125555500 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Bronze |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | Extended Insulation |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
R12555 Series
| Part | Center Contact Material | Number of Ports | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Frequency - Max [Max] | Body Material | Connector Style | Shield Termination | Mounting Type | Contact Termination | Impedance | Connector Type | Dielectric Material | Center Contact Plating | Mounting Feature | Voltage Rating | Features | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Beryllium Copper | 1 | 500 | -65 ░C | 165 °C | Silver | 18 GHz | Stainless Steel | SMA | Solder | Panel Mount Threaded | Solder | 50 Ohms | Female Socket Receptacle | Polytetrafluoroethylene (PTFE) | Gold | ||||
Radiall USA, Inc. | Beryllium Copper | 1 | 500 | -65 ░C | 165 °C | Silver | 18 GHz | Stainless Steel | SMA | Solder | Solder Cup | 50 Ohms | Female Socket Jack | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Front Side Nut | 335 V | Extended Insulation | ||
Radiall USA, Inc. | Beryllium Copper | 1 | 500 | -65 ░C | 165 °C | Silver | 18 GHz | Stainless Steel | SMA | Solder | Panel Mount Threaded | Solder | 50 Ohms | Female Socket Receptacle | Polytetrafluoroethylene (PTFE) | Gold | ||||
Radiall USA, Inc. | Beryllium Copper | 1 | 500 | -65 ░C | 165 °C | Silver | 18 GHz | Stainless Steel | SMA | Solder | Solder Cup | 50 Ohms | Female Socket Jack | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Front Side Nut | 335 V | Extended Insulation | ||
Radiall USA, Inc. | Beryllium Copper | 1 | 500 | -65 ░C | 165 °C | Gold | 18 GHz | Stainless Steel | SMA | Solder | Solder Cup | 50 Ohms | Female Socket Jack | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Front Side Nut | 500 V | Extended Insulation | Gold | |
Radiall USA, Inc. | Bronze | 1 | 500 | -65 ░C | 165 °C | Gold | 18 GHz | Brass | SMA | Solder | Panel Mount Through Hole | Solder | 50 Ohms | Female Socket Jack | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Rear Side Nut | Extended Insulation | Gold | |
Radiall USA, Inc. | Bronze | 1 | 500 | -65 ░C | 165 °C | Gold | 18 GHz | Brass | SMA | Solder | Panel Mount Through Hole | Solder | 50 Ohms | Female Socket Jack | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Rear Side Nut | Extended Insulation | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 29.61 | |
Description
General part information
R12555 Series
SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
