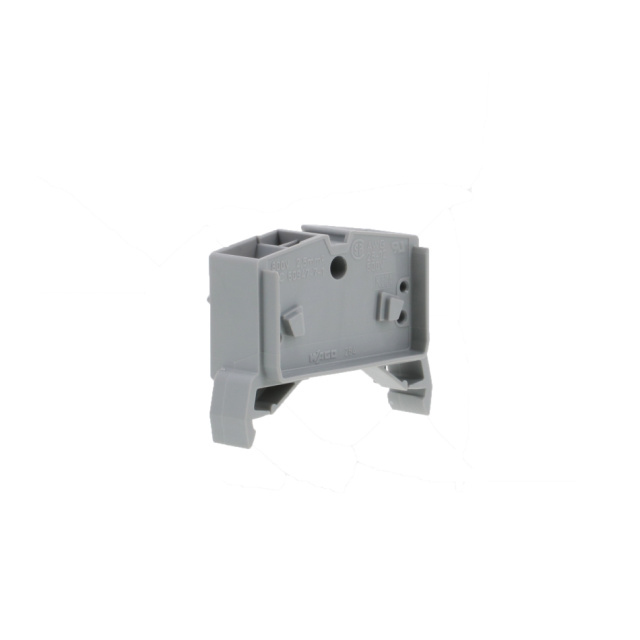

264-731

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

264-731

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	264-731

Current - IEC	24 A
Height (Max)	24.51 mm
Height (Max) [Max]	0.965 in
Housing Color	Gray
Length	1.496 in
Length	38 mm
Material - Insulation	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	DIN Rail
Number of Levels	1
Number of Positions	4
Stripping Length [Max] [x]	9 mm
Stripping Length [Min] [x]	8 mm
Terminal - Width [y]	10 mm
Termination Style	Push In, Spring
Type	Middle
Voltage - IEC	800 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²

264 Series

Part	Housing Color	Termination Style	Material Flammability Rating	Material - Insulation	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Stripping Length [Min] [x]	Stripping Length [Max] [x]	Length	Length	Mounting Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Height (Max) [Max]	Height (Max)	Type	Current - IEC	Number of Levels	Number of Positions	For Use With/Related Products	Color	Style	Length [x]	Length [x]	Height (Max) [Max]	Height (Max) [Max]	Features
WAGO Corporation 264-711	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	6 mm	28 AWG	12 AWG	8 mm	9 mm	1.496 in	38 mm	DIN Rail	0.08 mm²	2.5 mm²	800 V	0.965 in	24.51 mm	Middle	24 A	1	2
WAGO Corporation 264-402																		Terminal Block Cross Connection			2	Terminal Blocks	Gray	Flat Pins - Angled
WAGO Corporation 264-737	Green Yellow	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm	1.831 "	46.51 mm	DIN Rail	0.08 mm²	2.5 mm²		0.965 in	24.51 mm	Middle		1	4
WAGO Corporation 264-369																		End Plate				Terminal Blocks
WAGO Corporation 264-361																		End Plate				Terminal Blocks	Gray
WAGO Corporation 264-351	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm			Direct Mount	0.08 mm²	2.5 mm²	800 V			Middle	24 A	1	4				32 mm	1.26 "	0.87 in	22.1 mm
WAGO Corporation 264-331	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm			Direct Mount	0.08 mm²	2.5 mm²	800 V			Middle	24 A	1	4				32 mm	1.26 "	0.87 in	22.1 mm	Flange
WAGO Corporation 264-701	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	6 mm	28 AWG	12 AWG	8 mm	9 mm			DIN Rail	0.08 mm²	2.5 mm²	800 V	0.965 in	24.51 mm	Middle	24 A	1	2				32 mm	1.26 "
WAGO Corporation 264-301	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	6 mm	28 AWG	12 AWG	8 mm	9 mm			Direct Mount	0.08 mm²	2.5 mm²	800 V			Middle	24 A	1	2				32 mm	1.26 "	0.87 in	22.1 mm	Flange
WAGO Corporation 264-731	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm	1.496 in	38 mm	DIN Rail	0.08 mm²	2.5 mm²	800 V	0.965 in	24.51 mm	Middle	24 A	1	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.46
		10	$ 2.64
		25	$ 2.47
		50	$ 2.20
		100	$ 2.15
		250	$ 1.98
		500	$ 1.79
		1000	$ 1.59
		5000	$ 1.49
Newark	Each	1	$ 3.29
		25	$ 3.10
		100	$ 2.92
		250	$ 2.74
		500	$ 2.54

Description

General part information

264 Series

The 264-731 is a 4-conductor grey miniature Through Terminal Block with centre marking and front-entry wiring. This terminal block is suitable for DIN 15 rail mounting. It accepts 28 to 12AWG wire size.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

3D Product Image EN

Datasheet
