023I,GY

Active

Serpac

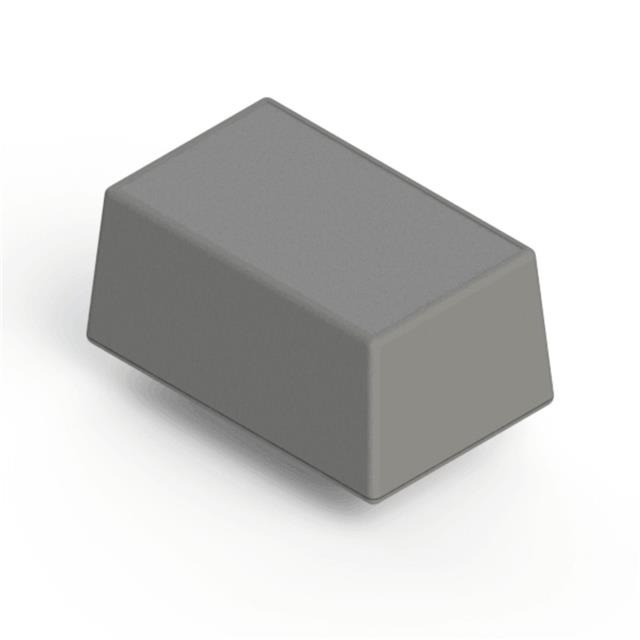

BOX ABS GRAY 4.1"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.1"L X 2.6"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	023I,GY	023I Series

Area (L x W)	10.7 in²	10.7 in²
Area (L x W)	69 cm²	69 cm²
Color	Gray	Almond, Black, Gray
Container Type	Box	Box
Design	Cover Included, Hand Held	Cover Included, Hand Held
Features	PCB Supports	PCB Supports
Height [z]	48.26 mm	48.26 mm
Height [z]	1.9 in	1.9 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	104.14 mm	104.14 mm
Size / Dimension [x]	4.1 "	4.1 "
Size / Dimension [y]	2.6 "	2.6 "
Size / Dimension [y]	66.04 mm	66.04 mm
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in

BOX ABS ALMOND 4.1"L X 2.6"W

Part	Container Type	Color	Thickness	Thickness	Material Flammability Rating	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Material	Features	Design
Serpac 023I,AL	Box	Almond	2.54 mm	0.1 in	UL94 HB	IP40, NEMA 1	2.6 "	66.04 mm	104.14 mm	4.1 "	10.7 in²	69 cm²	48.26 mm	1.9 in	Plastic, ABS	PCB Supports
Serpac 023I,BK	Box	Black	2.54 mm	0.1 in	UL94 HB	IP40, NEMA 1	2.6 "	66.04 mm	104.14 mm	4.1 "	10.7 in²	69 cm²	48.26 mm	1.9 in	Plastic, ABS	PCB Supports
Serpac 023I,GY	Box	Gray	2.54 mm	0.1 in	UL94 HB	IP40, NEMA 1	2.6 "	66.04 mm	104.14 mm	4.1 "	10.7 in²	69 cm²	48.26 mm	1.9 in	Plastic, ABS	PCB Supports	Cover Included, Hand Held

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.32

General part information

Box Plastic, ABS Gray Hand Held, Cover Included 4.100" L x 2.600" W (104.14mm x 66.04mm) X 1.900" (48.26mm)
