Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 74LVC04ADR2G | 74LVC04 Series |
|---|---|---|
| Current - Output High, Low [custom] | 24 mA | 24 mA |
| Current - Output High, Low [custom] | 24 mA | 24 mA |
| Current - Quiescent (Max) [Max] | 40 µA | 40 µA |
| Input Logic Level - High [Max] | 2 V | 2 V |
| Input Logic Level - High [Min] | 1.08 V | 1.08 V |
| Input Logic Level - Low [Max] | 0.8 V | 0.8 V |
| Input Logic Level - Low [Min] | 0.12 V | 0.12 V |
| Logic Type | Inverter | Inverter |
| Max Propagation Delay @ V, Max CL | 6 ns | 6 ns |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 6 | 6 |
| Number of Inputs | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 3.9 mm | 3.9 mm |
| Package / Case | 0.154 in | 0.154 in |
| Package / Case | 14-SOIC | 14-SOIC, 14-TSSOP |
| Package / Case | - | 0.173 in |
| Package / Case | - | 4.4 mm |
| Supplier Device Package | - | 14-TSSOP |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 1.2 V | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
74LVC04 Series
IC INVERTER 6CH 1-INP 14SOIC
| Part | Number of Inputs | Input Logic Level - Low [Min] | Input Logic Level - Low [Max] | Max Propagation Delay @ V, Max CL | Input Logic Level - High [Max] | Input Logic Level - High [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Logic Type | Number of Circuits | Mounting Type | Current - Quiescent (Max) [Max] | Supplier Device Package | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 0.12 V | 0.8 V | 6 ns | 2 V | 1.08 V | 1.2 V | 3.6 V | 3.9 mm | 0.154 in | 14-SOIC | 125 °C | -40 °C | 24 mA | 24 mA | Inverter | 6 | Surface Mount | 40 µA | ||||
1 | 0.12 V | 0.8 V | 6 ns | 2 V | 1.08 V | 1.2 V | 3.6 V | 14-TSSOP | 125 °C | -40 °C | 24 mA | 24 mA | Inverter | 6 | Surface Mount | 40 µA | 14-TSSOP | 0.173 in | 4.4 mm |
Description
General part information
74LVC04 Series

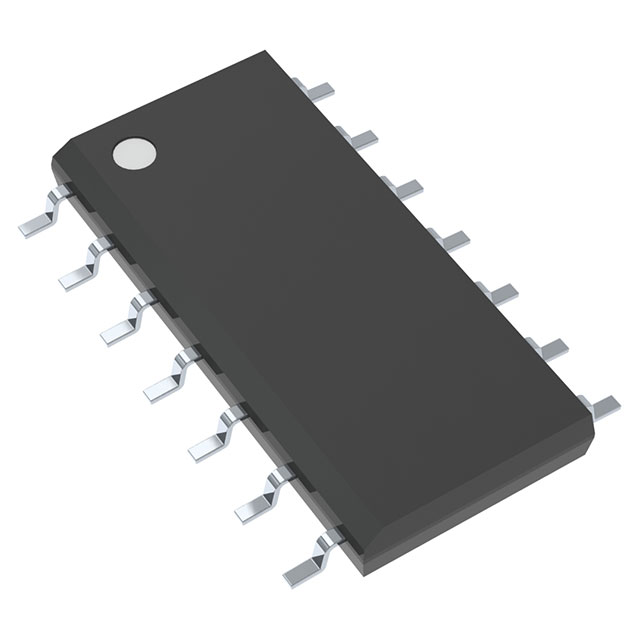

Inverter IC 6 Channel 14-SOIC
