DS21352G
ActiveAnalog Devices Inc./Maxim Integrated

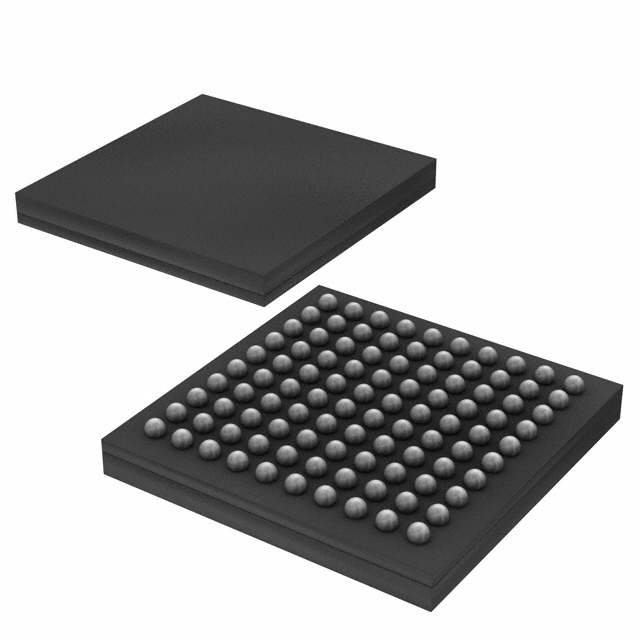

IC TELECOM INTERFACE 100CSBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS21352G
ActiveAnalog Devices Inc./Maxim Integrated
IC TELECOM INTERFACE 100CSBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS21352G | DS21352 Series |
|---|---|---|
| Current - Supply | 75 mA | 75 mA |
| Function | Single-Chip Transceiver | Single-Chip Transceiver |
| Interface | HDLC, T1 | HDLC, T1 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Package / Case | CSPBGA, 100-LFBGA | 100-LQFP, CSPBGA, 100-LFBGA |
| Supplier Device Package | 100-CSBGA (10x10) | 100-LQFP (14x14), 100-CSBGA (10x10) |
| Voltage - Supply [Max] | 3.47 V | 3.47 V |
| Voltage - Supply [Min] | 3.14 V | 3.14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 31.56 | |
DS21352 Series
IC TELECOM INTERFACE 100LQFP
| Part | Supplier Device Package | Package / Case | Function | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface | Current - Supply | Operating Temperature [Max] | Operating Temperature [Min] | Number of Circuits | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS21352L | 100-LQFP (14x14) | 100-LQFP | Single-Chip Transceiver | 3.47 V | 3.14 V | HDLC, T1 | 75 mA | 70 °C | 0 °C | 1 | Surface Mount |
Analog Devices Inc./Maxim Integrated DS21352L+ | 100-LQFP (14x14) | 100-LQFP | Single-Chip Transceiver | 3.47 V | 3.14 V | HDLC, T1 | 75 mA | 70 °C | 0 °C | 1 | Surface Mount |
Analog Devices Inc./Maxim Integrated DS21352LN+ | 100-LQFP (14x14) | 100-LQFP | Single-Chip Transceiver | 3.47 V | 3.14 V | HDLC, T1 | 75 mA | 85 °C | -40 °C | 1 | Surface Mount |
Analog Devices Inc./Maxim Integrated DS21352LB+ | 100-LQFP (14x14) | 100-LQFP | Single-Chip Transceiver | 3.47 V | 3.14 V | HDLC, T1 | 75 mA | 70 °C | 0 °C | 1 | Surface Mount |
Analog Devices Inc./Maxim Integrated DS21352G | 100-CSBGA (10x10) | 100-LFBGA, CSPBGA | Single-Chip Transceiver | 3.47 V | 3.14 V | HDLC, T1 | 75 mA | 70 °C | 0 °C | 1 | Surface Mount |
Analog Devices Inc./Maxim Integrated DS21352LN | 100-LQFP (14x14) | 100-LQFP | Single-Chip Transceiver | 3.47 V | 3.14 V | HDLC, T1 | 75 mA | 85 °C | -40 °C | 1 | Surface Mount |
Description
General part information
DS21352 Series
Telecom IC Single-Chip Transceiver 100-CSBGA (10x10)
Documents
Technical documentation and resources
