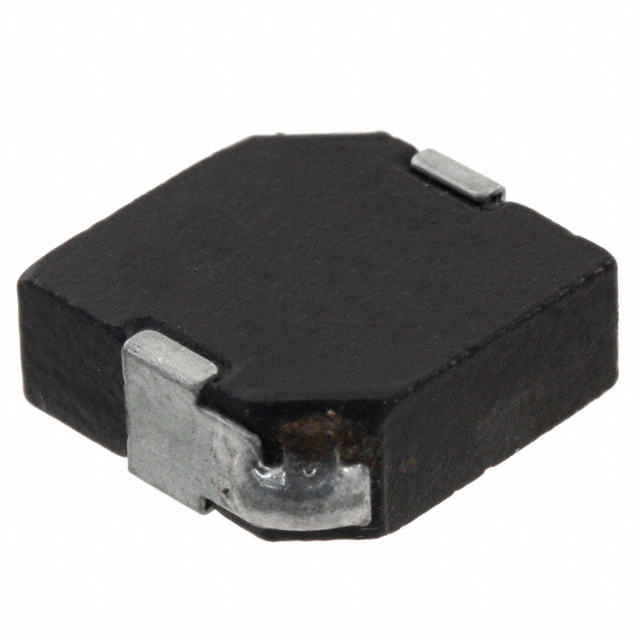

PM13666S-1R0M

Obsolete

Bourns Inc.

FIXED IND 1UH 25A 14.4 MOHM SMD

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 1UH 25A 14.4 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Type	Tolerance	Package / Case	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Material - Core	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Inductance	Operating Temperature [Min]	Operating Temperature [Max]
Bourns Inc. PM13666S-1R0M-RC	100 kHz	0.547 in	13.9 mm	0.531 in	13.5 mm	Surface Mount	Drum Core Wirewound	20 %	Nonstandard	50 A	2.5 mOhm	Iron	Shielded	5.9 mm	0.232 "	29 A	1 µH	-55 °C	150 °C
Bourns Inc. PM13666S-1R0M	100 kHz	0.547 in	13.9 mm	0.531 in	13.5 mm	Surface Mount	Wirewound	20 %	Nonstandard				Shielded	5.9 mm	0.232 "	25 A	1 µH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 µH Shielded Wirewound Inductor 25 A 14.4mOhm Max Nonstandard
