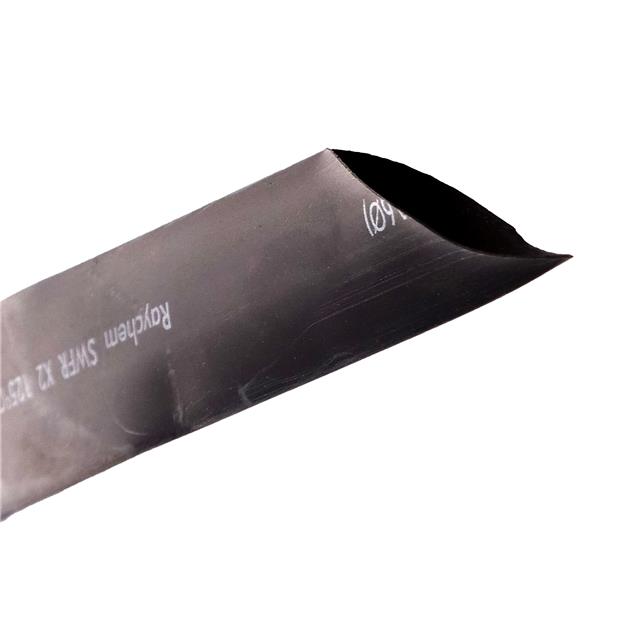

X2-16.0-0-FSP-SM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK TUBING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

X2-16.0-0-FSP-SM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK TUBING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	X2-16.0-0-FSP-SM

Color	Black
Features	Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered [diameter]	0.315 in
Inner Diameter - Recovered [diameter]	8 mm
Inner Diameter - Supplied [diameter]	16.89 mm
Inner Diameter - Supplied [diameter]	0.665 in
Length	164 ft
Length	50 m
Length	Enter Number of Meters in Order Quantity
Material	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 ░C
Recovered Wall Thickness	0.027 "
Recovered Wall Thickness	0.69 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C
Type	Tubing, Flexible

RAYCHEM SWFR X2 Series

Part	Shrinkage Ratio	Features	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Color	Length	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Shrink Temperature	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Inner Diameter - Recovered	Inner Diameter - Recovered	Recovered Wall Thickness
TE Connectivity Raychem Cable Protection X2-3.0-0-SP	2 to 1	Abrasion Resistant Flame Retardant	0.43 mm	0.017 in	144 Months	Black	656.2 ft	200 m	1.52 mm	0.06 in	Polyolefin (PO) Irradiated Halogen Free	70 °C	3.28 ft 16.4 ft	1 m 5 m	125 °C	-30 ░C	18 °C 65 °F	35 °C	Tubing Flexible
TE Connectivity Raychem Cable Protection X2-1.0-0-SP-SM	2 to 1	Abrasion Resistant Flame Retardant	0.43 mm	0.017 in	144 Months	Black	656.2 ft	200 m	0.51 mm	0.02 in	Polyolefin (PO) Irradiated Halogen Free	70 °C			125 °C	-30 ░C	18 °C 65 °F	35 °C	Tubing Flexible	0.059 in	1.5 mm
TE Connectivity Raychem Cable Protection X2-16.0-0-FSP-SM	2 to 1	Abrasion Resistant Flame Retardant	0.69 mm	0.027 "	144 Months	Black	164 ft	50 m	8 mm	0.315 in	Polyolefin (PO) Irradiated Halogen Free	70 °C			125 °C	-30 ░C	18 °C 65 °F	35 °C	Tubing Flexible	0.665 in	16.89 mm	Enter Number of Meters in Order Quantity
TE Connectivity Raychem Cable Protection X2-9.0-0-FSP	2 to 1	Abrasion Resistant Flame Retardant	0.56 mm	0.022 "	144 Months	Black	164 ft	50 m	4.52 mm	0.178 in	Polyolefin (PO) Irradiated Halogen Free	70 °C			125 °C	-30 ░C	18 °C 65 °F	35 °C	Tubing Flexible	0.378 in	9.6 mm
TE Connectivity Raychem Cable Protection X2-8.0-0-FSP	2 to 1	Abrasion Resistant Flame Retardant	0.56 mm	0.022 "	144 Months	Black	164 ft	50 m	3.99 mm	0.157 in	Polyolefin (PO) Irradiated Halogen Free	70 °C	3.28 ft	1 m	125 °C	-30 ░C	18 °C 65 °F	35 °C	Tubing Flexible	0.339 in	8.61 mm
TE Connectivity Raychem Cable Protection X2-10.0-0-FSP	2 to 1	Abrasion Resistant Flame Retardant	0.56 mm	0.022 "	144 Months	Black			5 mm	0.197 "	Polyolefin (PO) Irradiated Halogen Free	70 °C	3.28 ft 16.4 ft	1 m 5 m	125 °C	-30 ░C	18 °C 65 °F	35 °C	Tubing Flexible	0.409 in	10.39 mm
TE Connectivity Raychem Cable Protection X2-11.0-0-FSP-SM	2 to 1	Abrasion Resistant Flame Retardant	0.56 mm	0.022 "	144 Months	Black	164 ft	50 m			Polyolefin (PO) Irradiated Halogen Free	70 °C	3.28 ft	1 m	125 °C	-30 ░C	18 °C 65 °F	35 °C	Tubing Flexible	0.449 in	11.41 mm	Enter Number of Meters in Order Quantity	5.51 mm	0.217 in
TE Connectivity Raychem Cable Protection X2-25.0-0-FSP-SM	2 to 1	Abrasion Resistant Flame Retardant	0.76 mm		144 Months	Black	164 ft	50 m	12.5 mm	0.492 "	Polyolefin (PO) Irradiated Halogen Free	70 °C	16.4 ft	5 m	125 °C	-30 ░C	18 °C 65 °F	35 °C	Tubing Flexible	1.063 in	27 mm				0.03 "
TE Connectivity Raychem Cable Protection X2-8.0-0-FSP-SM	2 to 1	Abrasion Resistant Flame Retardant	0.56 mm	0.022 "	144 Months	Black	164 ft	50 m	3.99 mm	0.157 in	Polyolefin (PO) Irradiated Halogen Free	70 °C			125 °C	-30 ░C	18 °C 65 °F	35 °C	Tubing Flexible	0.339 in	8.61 mm	Enter Number of Meters in Order Quantity
TE Connectivity Raychem Cable Protection X2-18.0-0-FSP-SM	2 to 1	Abrasion Resistant Flame Retardant	0.76 mm		144 Months	Black	32.8 ' 82 ft 164 ft	10 m 25 m 50 m	8.99 mm	0.354 in	Polyolefin (PO) Irradiated Halogen Free	70 °C			125 °C	-30 ░C	18 °C 65 °F	35 °C	Tubing Flexible	0.748 in	19 mm				0.03 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 4.30
		5	$ 4.13
		10	$ 3.18
		25	$ 2.93
		50	$ 2.75
		100	$ 2.58
	Spool	50	$ 1.88
		100	$ 1.77
		250	$ 1.59
		500	$ 1.53
		1250	$ 1.50

Description

General part information

RAYCHEM SWFR X2 Series

Heat Shrink Tubing, Flexible 0.665" (16.89mm) 2 to 1 Black 164.0' (50.0m)
