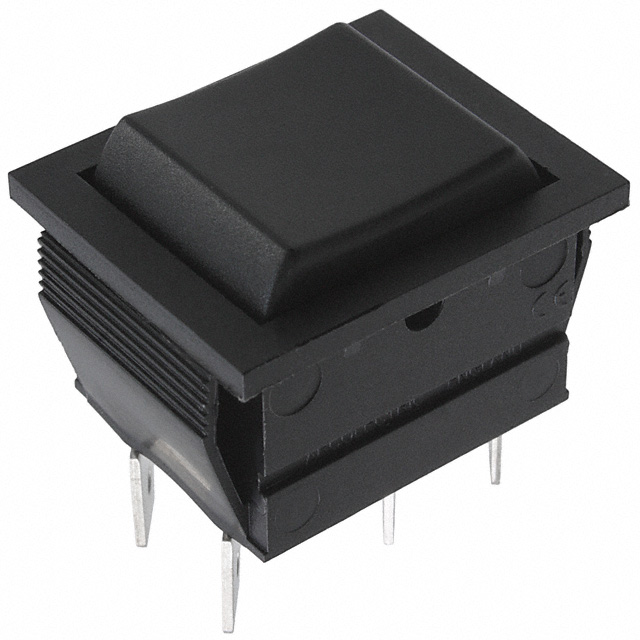

C1570AABB
ActiveBULGIN LIMITED
SWITCH ROCKER DPDT 16A 250V
Deep-Dive with AI
Search across all available documentation for this part.
C1570AABB
ActiveBULGIN LIMITED
SWITCH ROCKER DPDT 16A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1570AABB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A, 10 A |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.3 mm |
| Panel Cutout Dimensions [y] | 22.4 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.48 | |
| 10 | $ 10.34 | |||
| 25 | $ 9.91 | |||
| 50 | $ 9.42 | |||
| 100 | $ 9.04 | |||
| 250 | $ 8.50 | |||
| 500 | $ 7.85 | |||
| 1000 | $ 7.58 | |||
Description
General part information
C1570AA Series
Rocker Switch DPDT 16A (AC), 10A (DC) 250 V Panel Mount, Snap-In
