5-1105301-1
ActiveTE Connectivity AMP Connectors

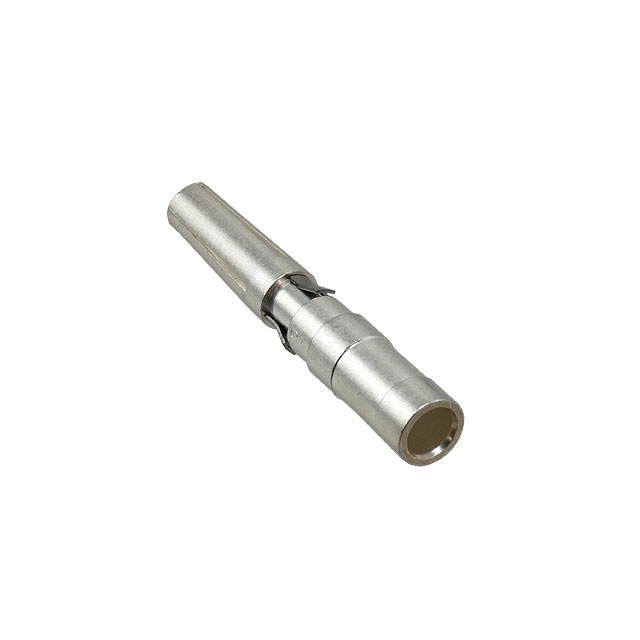

CONTACT H.D. CRIMP SOCKET 11AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-1105301-1
ActiveTE Connectivity AMP Connectors
CONTACT H.D. CRIMP SOCKET 11AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-1105301-1 | 1105301 Series |
|---|---|---|
| Contact Finish | Silver | Gold, Silver |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Machined | Machined |
| Wire Gauge | 11 AWG | 4 - 16 AWG |
| Wire Gauge | - | 0.13 mm² |
| Wire Gauge | - | 0.4 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 1.29 | |
1105301 Series
CONTACT H.D. CRIMP SKT 13.5AWG
| Part | Contact Termination | Wire Gauge | Type | Pin or Socket | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-1105301-2 | Crimp | 13.5 AWG | Machined | Socket | Gold | ||
TE Connectivity AMP Connectors 6-1105301-2 | Crimp | Machined | Socket | Gold | 0.13 mm² | 0.4 mm² | |
TE Connectivity AMP Connectors 3-1105301-1 | Crimp | 16 AWG | Machined | Socket | Silver | ||
TE Connectivity AMP Connectors 5-1105301-2 | Crimp | 4 mm² | Machined | Socket | Gold | ||
TE Connectivity AMP Connectors 7-1105301-8 | Crimp | 10 AWG | Machined | Socket | Silver | ||
TE Connectivity AMP Connectors 5-1105301-1 | Crimp | 11 AWG | Machined | Socket | Silver |
Description
General part information
1105301 Series
Contact Crimp Socket 11 AWG Silver
