88859-6

Active

TE Connectivity AMP Connectors

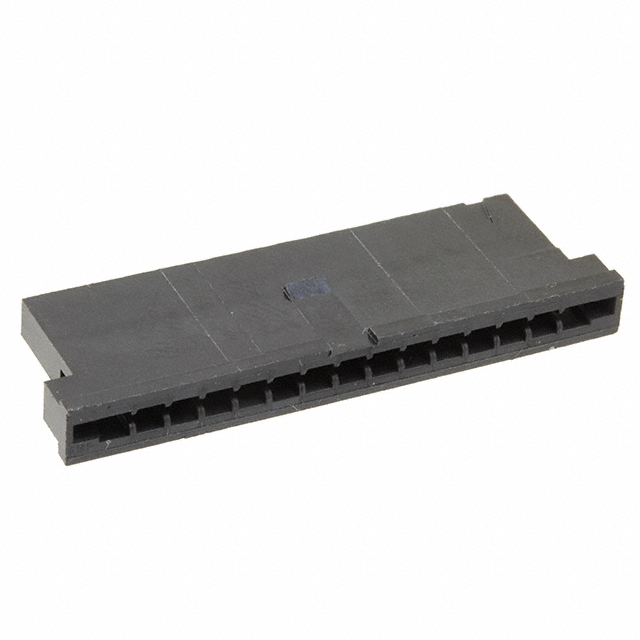

CONN FFC RCPT HSG 15POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

88859-6

Active

TE Connectivity AMP Connectors

CONN FFC RCPT HSG 15POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 2.01

Description

General part information

88859 Series

Housing FFC Housing for Female Contacts Connector Detent Lock 15Pos 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Specification	88859-6	88859 Series

Connector Type	Housing for Female Contacts	Housing for Female Contacts
Current Rating (Amps)	1.5 A	1.5 A
FFC, FCB Thickness [Max]	0.13 mm	0.13 mm
FFC, FCB Thickness [Min]	0.05 mm	0.05 mm
Flat Flex Type	FFC	FFC
Housing Color	Black	Black
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Locking Feature	Detent Lock	Detent Lock
Material Flammability Rating	UL94 V-0	UL94 V-0
Note	Contacts Not Included	Contacts Not Included
Number of Positions	15	6 - 20
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Voltage Rating	300 VDC	300 VDC

Part	Locking Feature	Housing Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Flat Flex Type	Number of Rows	Number of Positions	Note	Material Flammability Rating	Voltage Rating	FFC, FCB Thickness [Min]	FFC, FCB Thickness [Max]	Pitch [x]	Pitch [x]	Connector Type	Housing Material
TE Connectivity AMP Connectors 88859-6	Detent Lock	Black	1.5 A	-65 ░C	105 ░C	FFC	1	15	Contacts Not Included	UL94 V-0	300 VDC	0.05 mm	0.13 mm	2.54 mm	0.1 in	Housing for Female Contacts	Polybutylene Terephthalate (PBT), Glass Filled
TE Connectivity AMP Connectors 88859-9	Detent Lock	Black	1.5 A	-65 ░C	105 ░C	FFC	1		Contacts Not Included	UL94 V-0	300 VDC	0.05 mm	0.13 mm	2.54 mm	0.1 in	Housing for Female Contacts	Polybutylene Terephthalate (PBT), Glass Filled
TE Connectivity AMP Connectors 88859-8	Detent Lock	Black	1.5 A	-65 ░C	105 ░C	FFC	1	20	Contacts Not Included	UL94 V-0	300 VDC	0.05 mm	0.13 mm	2.54 mm	0.1 in	Housing for Female Contacts	Polybutylene Terephthalate (PBT), Glass Filled
TE Connectivity AMP Connectors 88859-2	Detent Lock	Black	1.5 A	-65 ░C	105 ░C	FFC	1	8	Contacts Not Included	UL94 V-0	300 VDC	0.05 mm	0.13 mm	2.54 mm	0.1 in	Housing for Female Contacts	Polybutylene Terephthalate (PBT), Glass Filled
TE Connectivity AMP Connectors 88859-5	Detent Lock	Black	1.5 A	-65 ░C	105 ░C	FFC	1	13	Contacts Not Included	UL94 V-0	300 VDC	0.05 mm	0.13 mm	2.54 mm	0.1 in	Housing for Female Contacts	Polybutylene Terephthalate (PBT), Glass Filled
TE Connectivity AMP Connectors 1-88859-1	Detent Lock	Black	1.5 A	-65 ░C	105 ░C	FFC	1		Contacts Not Included	UL94 V-0	300 VDC	0.05 mm	0.13 mm	2.54 mm	0.1 in	Housing for Female Contacts	Polybutylene Terephthalate (PBT), Glass Filled
TE Connectivity AMP Connectors 1-88859-2	Detent Lock	Black	1.5 A	-65 ░C	105 ░C	FFC	1	7	Contacts Not Included	UL94 V-0	300 VDC	0.05 mm	0.13 mm	2.54 mm	0.1 in	Housing for Female Contacts	Polybutylene Terephthalate (PBT), Glass Filled
TE Connectivity AMP Connectors 88859-3	Detent Lock	Black	1.5 A	-65 ░C	105 ░C	FFC	1	10	Contacts Not Included	UL94 V-0	300 VDC	0.05 mm	0.13 mm	2.54 mm	0.1 in	Housing for Female Contacts	Polybutylene Terephthalate (PBT), Glass Filled
TE Connectivity AMP Connectors 88859-1	Detent Lock	Black	1.5 A	-65 ░C	105 ░C	FFC	1	6	Contacts Not Included	UL94 V-0	300 VDC	0.05 mm	0.13 mm	2.54 mm	0.1 in	Housing for Female Contacts	Polybutylene Terephthalate (PBT), Glass Filled
TE Connectivity AMP Connectors 88859-7	Detent Lock	Black	1.5 A	-65 ░C	105 ░C	FFC	1	14	Contacts Not Included	UL94 V-0	300 VDC	0.05 mm	0.13 mm	2.54 mm	0.1 in	Housing for Female Contacts	Polybutylene Terephthalate (PBT), Glass Filled
