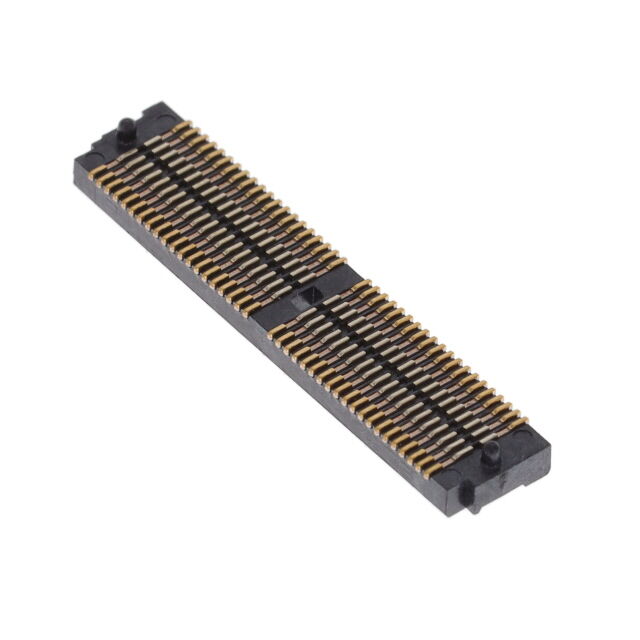

LTH-040-01-G-D-A-K-TR

Active

Samtec Inc.

CONN, STACKING, PLUG, 80POS, 2ROW ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Samtec Inc.

CONN, STACKING, PLUG, 80POS, 2ROW ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	LTH-040-01-G-D-A-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.066 in
Height Above Board	1.68 mm
Mated Stacking Heights	2.31 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Features	Height Above Board	Height Above Board	Mated Stacking Heights	Mounting Type	Connector Type	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]
Samtec Inc. LTH-040-01-G-D-A-K-TR	2	Board Guide Pick and Place	0.066 in	1.68 mm	2.31 mm	Surface Mount	Header Outer Shroud Contacts	Gold	80	10 Áin	0.25 Ám	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
