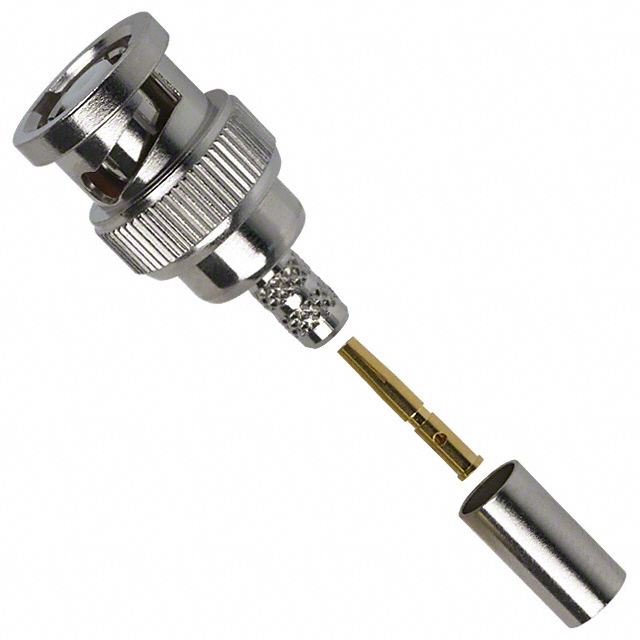

112116RP

Active

Amphenol RF

CONN RP-BNC PLUG STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-BNC PLUG STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	112116RP

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-BNC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Insertion Loss	Shield Termination	Fastening Type	Cable Group	Voltage Rating	Connector Type	Number of Ports	Mating Cycles	Housing Color	Impedance	Includes	Center Contact Plating	Contact Termination	Dielectric Material	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Connector Style	Frequency - Max [Max]	Mounting Type	Body Finish
Amphenol RF 112116RP	0.2 dB	Crimp	Bayonet Lock	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500 V	Female Socket Plug	1	500	Silver	50 Ohms	1 Connector 1 Contact 1 Ferrule	Gold	Crimp	Polytetrafluoroethylene (PTFE)	Phosphor Bronze	-65 ░C	165 °C	Brass	RP-BNC	4 GHz	Free Hanging (In-Line)	Nickel
Amphenol RF 112116-10	0.2 dB	Crimp	Bayonet Lock	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500 V	Male Pin Plug	1	500	Silver	50 Ohms	1 Connector 1 Contact 1 Ferrule	Gold	Crimp	Polytetrafluoroethylene (PTFE)	Brass	-65 ░C	165 °C	Brass	BNC	4 GHz	Free Hanging (In-Line)	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-BNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
