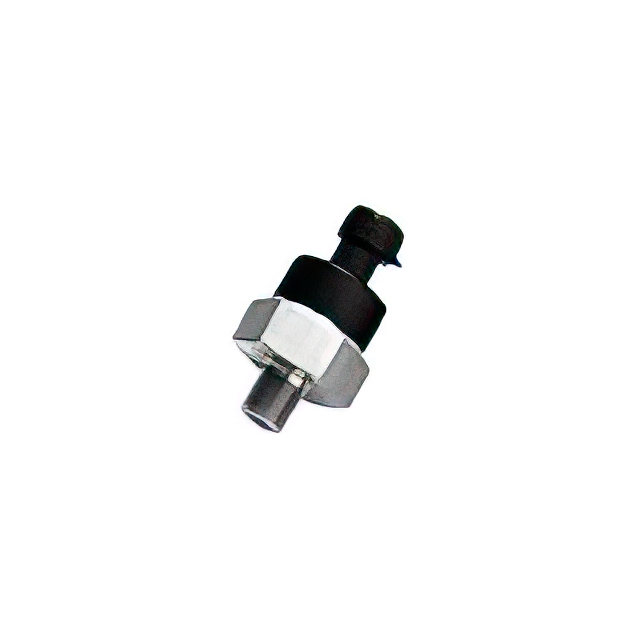

P265-100A-D1C
ActiveSensata Technologies
SENSOR PRES ABS 0-100PSI 1/4"NPT
Deep-Dive with AI
Search across all available documentation for this part.
P265-100A-D1C
ActiveSensata Technologies
SENSOR PRES ABS 0-100PSI 1/4"NPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P265-100A-D1C |
|---|---|
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 1000 PSI |
| Maximum Pressure [Max] | 6894.76 kPa |
| Operating Pressure | 689.48 kPa |
| Operating Pressure | 100 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Output Type | Analog Voltage |
| Package / Case | Cylinder |
| Port Size | NPT, Female |
| Port Size | 0.25 " |
| Port Size | 6.35 mm |
| Port Style | Threaded |
| Termination Style | Packard, 3 Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 204.49 | |
| 10 | $ 187.67 | |||
| 50 | $ 129.73 | |||
Description
General part information
P265-100 Series
SENSOR PRES ABS 0-100PSI 1/4"NPT
Documents
Technical documentation and resources
No documents available
