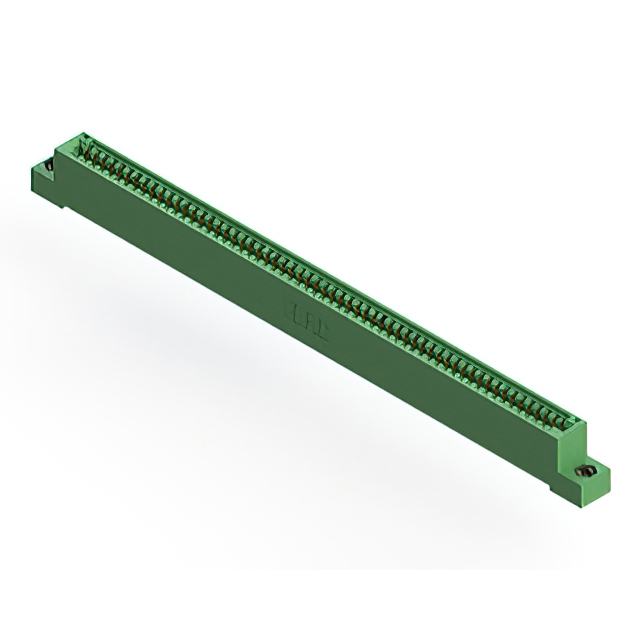

345-059-524-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 59 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-059-524-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 59 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-059-524-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 59 |
| Number of Positions/Bay/Row [custom] | 59 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-059 Series
...
| Part | Read Out | Color | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Gender | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Pitch [x] | Pitch [x] | Card Type | Contact Material | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature | Flange Feature | Termination Rows | Mounting Type | Contact Type | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Green | -40 °C | 105 ░C | Solder | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 59 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 59 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1 | Through Hole Right Angle | Cantilever | |||
EDAC Inc. | Single | Green | -40 °C | 105 ░C | Solder | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 59 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 59 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Through Hole | Cantilever | Card Guides | ||||
EDAC Inc. | Single | Green | -40 °C | 105 ░C | Solder | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 59 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 59 | Flush Mount Side Opening Unthreaded | 1 | Through Hole | Cantilever | 3.25 mm | 0.128 " | |||
EDAC Inc. | Single | Green | -40 °C | 105 ░C | Solder | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 59 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 59 | Floating Bobbin Flush Mount | 1 | Through Hole | Cantilever | 2.95 mm | 0.116 in | |||
EDAC Inc. | Single | Green | -40 °C | 105 ░C | Solder | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 59 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 59 | Top Mount Opening Unthreaded | 1 | Through Hole | Cantilever | 3.96 mm | 0.156 in | |||
EDAC Inc. | Single | Green | -40 °C | 105 ░C | Wire Wrap | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 59 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 59 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Through Hole | Cantilever | Card Guides | ||||
EDAC Inc. | Single | Green | -40 °C | 105 ░C | Solder | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 59 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 59 | Flush Mount Top Opening Unthreaded | 1 | Through Hole | Cantilever | 3.96 mm | 0.156 in | |||
EDAC Inc. | Single | Green | -40 °C | 105 ░C | Solder | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 59 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 59 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Through Hole | Cantilever | |||||
EDAC Inc. | Single | Green | -40 °C | 105 ░C | Solder | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 59 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 59 | Flush Mount M3 Threaded Insert Top Opening | 1 | Through Hole | Cantilever | |||||
EDAC Inc. | Single | Green | -40 °C | 105 ░C | Solder | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 59 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 59 | 4-40 Threaded Insert Top Mount Opening | 1 | Through Hole | Cantilever | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-059 Series
59 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
