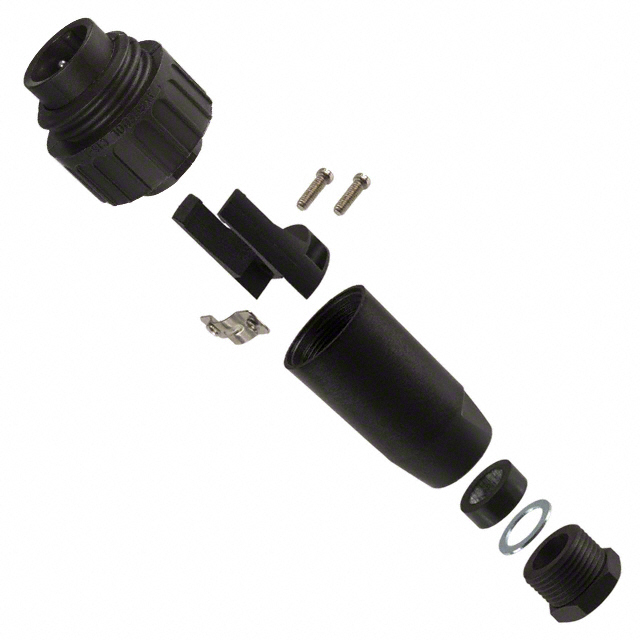

Specification	T3108 001

Connector Type	Male Pins, Plug
Contact Finish - Mating	Silver
Current Rating	16 A
Fastening Type	Threaded
Features	Strain Relief
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Termination	Screw
Voltage Rating	400 V

T310 Series

Part	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Features	Termination	Mounting Type	Current Rating	Fastening Type	Shell Material	Primary Material	Contact Finish - Mating	Voltage Rating	Mounting Feature
Amphenol Tuchel Industrial T3108 001	Dust Tight Waterproof	IP67	Male Pins Plug	100 °C	-40 °C	4	Strain Relief	Screw	Free Hanging (In-Line)	16 A	Threaded	Nylon Polyamide (PA)	Plastic	Silver	400 V
Amphenol Tuchel Industrial T3107 000	Dust Tight Waterproof	IP67	Female Sockets Receptacle	100 °C	-40 °C	7		Solder	Panel Mount	10 A	Threaded	Nylon Polyamide (PA)	Plastic	Silver	250 V	Flange
Amphenol Tuchel Industrial T3104 101	Dust Tight Waterproof	IP67	Male Pins Plug	100 °C	-40 °C	7	Strain Relief	Solder	Free Hanging (In-Line)	10 A	Threaded	Nylon Polyamide (PA)	Plastic	Silver	250 V
Amphenol Tuchel Industrial T3106 000	Dust Tight Waterproof	IP67	Male Pins Receptacle	100 °C	-40 °C	7		Solder	Panel Mount	10 A	Threaded	Nylon Polyamide (PA)	Plastic	Silver	250 V	Flange
Amphenol Tuchel Industrial T3109 101	Dust Tight Waterproof	IP67	Female Sockets Plug	100 °C	-40 °C	4	Strain Relief	Screw	Free Hanging (In-Line)	16 A	Threaded	Nylon Polyamide (PA)	Plastic	Silver	400 V
Amphenol Tuchel Industrial T3109 001	Dust Tight Waterproof	IP67	Female Sockets Plug	100 °C	-40 °C	4	Strain Relief	Screw	Free Hanging (In-Line)	16 A	Threaded	Nylon Polyamide (PA)	Plastic	Silver	400 V
Amphenol Tuchel Industrial T3105 001	Dust Tight Waterproof	IP67	Female Sockets Plug	100 °C	-40 °C	7	Strain Relief	Solder	Free Hanging (In-Line)	10 A	Threaded	Nylon Polyamide (PA)	Plastic	Silver	250 V
Amphenol Tuchel Industrial T3104 001	Dust Tight Waterproof	IP67	Male Pins Plug	100 C	-40 C	7	Strain Relief	Solder	Free Hanging (In-Line)	10 A	Threaded	Nylon Polyamide (PA)	Plastic	Silver	250 V
Amphenol Tuchel Industrial T3109 081	Dust Tight Waterproof	IP67	Female Sockets Plug	100 °C	-40 °C	4	Cable Clamp	Screw	Free Hanging (In-Line) Right Angle	16 A	Threaded	Nylon Polyamide (PA)	Plastic	Silver	400 V
Amphenol Tuchel Industrial T3108 101	Dust Tight Waterproof	IP67	Male Pins Plug	100 °C	-40 °C	4	Strain Relief	Screw	Free Hanging (In-Line)	16 A	Threaded	Nylon Polyamide (PA)	Plastic	Silver	400 V
