M12A-12PMMS-SH8001

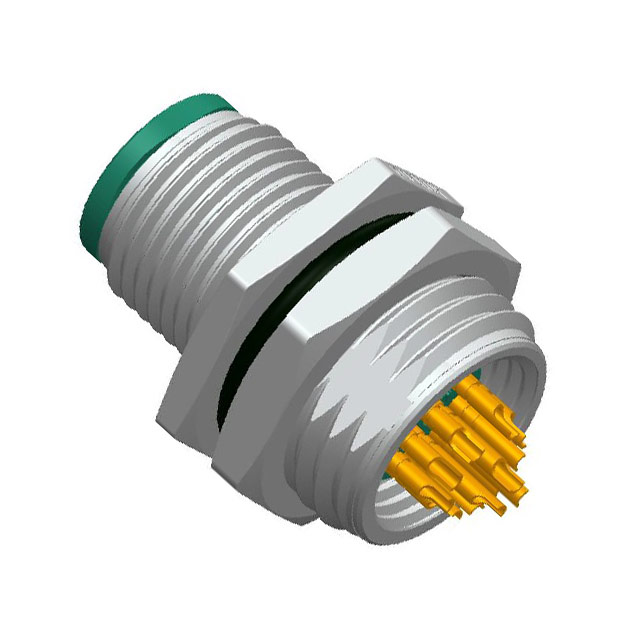

ActiveSENSOR CONNECTOR, M SERIES, M12, PLUG, 12 CONTACTS, SOLDER PIN, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
M12A-12PMMS-SH8001
ActiveSENSOR CONNECTOR, M SERIES, M12, PLUG, 12 CONTACTS, SOLDER PIN, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-12PMMS-SH8001 |
|---|---|
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 12 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-12 |
| Shielding | Shielded |
| Voltage Rating | 30 VAC |
M12A-12PMMS Series
| Part | Ingress Protection | Shell Size - Insert | Shell Finish | Shielding | Contact Material | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Shell Material | Contact Finish - Mating | Insert Material | Orientation | Voltage Rating | Mounting Feature | Primary Material | Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | IP68 IP69K | M12-12 | Nickel | Shielded | Copper Alloy | 1.5 A | 85 °C | -40 °C | 12 | Zinc Alloy | Gold | Polyamide (PA) Nylon Glass Filled | A | 30 VAC | Bulkhead - Front Side Nut | Metal | Silver | Male Pins Plug |
Amphenol LTW | IP68 IP69K | M12-12 | Nickel | Shielded | Copper Alloy | 1.5 A | 85 °C | -40 °C | 12 | Zinc Alloy | Gold | Polyamide (PA) Nylon Glass Filled | A | 30 VAC | Bulkhead - Rear Side Nut | Metal | Silver | Male Pins Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M12A-12PMMS Series
The M12A-12PMMS-SH8001 from Amphenol LTW is M series sensor connector. This M12 A-coded (metal nut) size connector for panel mount meets the most demanding needs in factory automation applications. M-series is perfectly suitable for industrial equipment, machinery and automation that offer safety in harsh environmental conditions including corrosion, shock vibration, dust, moisture build-up and extremely adverse installation situations.
