4932-0.25-5

Obsolete

3M (TC)

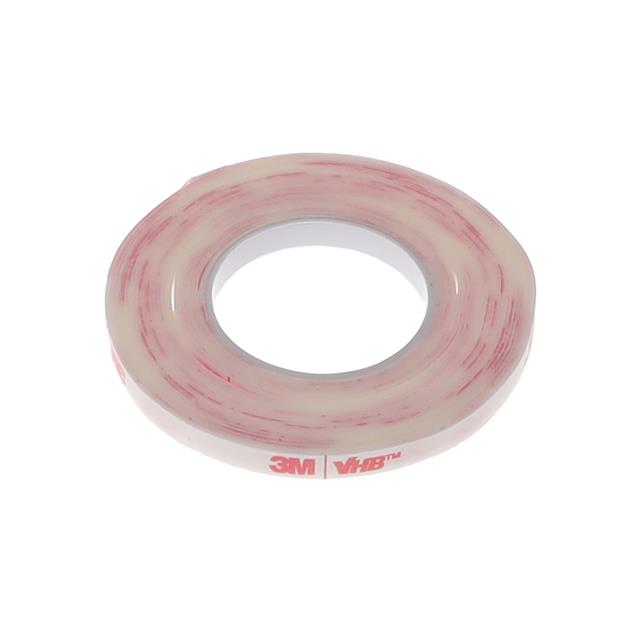

TAPE DBL SIDED WHITE 1/4"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4932-0.25-5

Obsolete

3M (TC)

TAPE DBL SIDED WHITE 1/4"X5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4932-0.25-5

Adhesive	Acrylic
Backing, Carrier	Acrylic Foam
Color	White
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	71 °C
Temperature Range	160 °F
Thickness	0.635 mm
Thickness	0.635 mm
Thickness	0.025 in
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Width	0.25 in
Width	0.25 in
Width	6.35 mm

4932 Series

...

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Temperature Range	Temperature Range	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life	Length	Length	Backing, Carrier	Width	Width	Width	Thickness	Thickness	Thickness	Shelf Life Start	Adhesive	Color	Tape Type	Length	Width	Width [diameter]	Width [y]	Width [y]	Length [x]	Length [x]	Width [x]	Width [x]	Usage
3M (TC) 3M 4932 0.5" X 10"-15	4 °C 40 °F	38 °C 100 °F	71 °C	160 °F	0.003 in	3 mils	0.076 mm	24 Months	10 in	254 mm	Acrylic Foam	0.5 in	12.7 mm	0.5 in	0.635 mm	0.635 mm	0.025 in	Date of Shipment	Acrylic	White	Double Coated Double Sided
3M (TC) 4932-0.25-5	4 °C 40 °F	38 °C 100 °F	71 °C	160 °F	0.003 in	3 mils	0.076 mm	24 Months	15 ft	4.6 m	Acrylic Foam	0.25 in	6.35 mm	0.25 in	0.635 mm	0.635 mm	0.025 in	Date of Shipment	Acrylic	White	Double Coated Double Sided	5 yd
3M (TC) 3M 4932 1.5" X 1.25"-25	4 °C 40 °F	38 °C 100 °F	71 °C	160 °F	0.003 in	3 mils	0.076 mm	24 Months	1.25 in	31.75 mm	Acrylic Foam		38.1 mm	1.5 "	0.635 mm	0.635 mm	0.025 in	Date of Shipment	Acrylic	White	Double Coated Double Sided		1 1/2
3M (TC) 4932CIR-0.625(2000)	4 °C 40 °F	38 °C 100 °F	71 °C	160 °F	0.003 in	3 mils	0.076 mm	24 Months			Acrylic Foam		0.63 in 16 mm		0.635 mm	0.635 mm	0.025 in	Date of Shipment	Acrylic	White	Double Coated Double Sided			0.625 in
3M (TC) 4932-0.125-5	4 °C 40 °F	38 °C 100 °F	71 °C	160 °F	0.003 in	3 mils	0.076 mm	24 Months	15 ft	4.6 m	Acrylic Foam	0.125 "	3.18 mm	0.13 in	0.635 mm	0.635 mm	0.025 in	Date of Shipment	Acrylic	White	Double Coated Double Sided	5 yd
3M (TC) 3M 4932 5" X 5"-6	4 °C 40 °F	38 °C 100 °F	71 °C	160 °F	0.003 in	3 mils	0.076 mm	24 Months			Acrylic Foam				0.635 mm	0.635 mm	0.025 in	Date of Shipment	Acrylic	White	Double Coated Double Sided				127 mm	5 in	5 in	127 mm
3M (TC) 3M 4932 9" X 9"-2	4 °C 40 °F	38 °C 100 °F	71 °C	160 °F	0.003 in	3 mils	0.076 mm	24 Months	9 "	228.6 mm	Acrylic Foam				0.635 mm	0.635 mm	0.025 in	Date of Shipment	Acrylic	White	Double Coated Double Sided								9 in	228.6 mm
3M (TC) 4932-6-10(2)	4 °C 40 °F	38 °C 100 °F	71 °C	160 °F	0.003 in	3 mils	0.076 mm	24 Months	10 in	254 mm	Acrylic Foam				0.635 mm	0.635 mm	0.025 in	Date of Shipment	Acrylic	White	Double Coated Double Sided								6 in	152.4 mm
3M (TC) 4932CIR-0.5(250)	4 °C 40 °F	38 °C 100 °F	71 °C	160 °F	0.003 in	3 mils	0.076 mm	24 Months			Acrylic Foam		12.7 mm	0.5 in	0.635 mm	0.635 mm	0.025 in	Date of Shipment	Acrylic	White	Double Coated Double Sided			0.5 in
3M (TC) 5-4932-1/2-4R	4 °C 40 °F	38 °C 100 °F			0.003 in	3 mils	0.076 mm	24 Months			Acrylic Foam	0.5 in	12.7 mm	0.5 in	5.08 mm	200 mils	0.2 in	Date of Shipment	Acrylic	White	Double Coated Double Sided						4 "	101.6 mm			General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4932 Series

Double Coated, Double Sided Tape Acrylic Adhesive White 0.25" (6.35mm) 1/4" X 15' (4.6m) 5 yds
