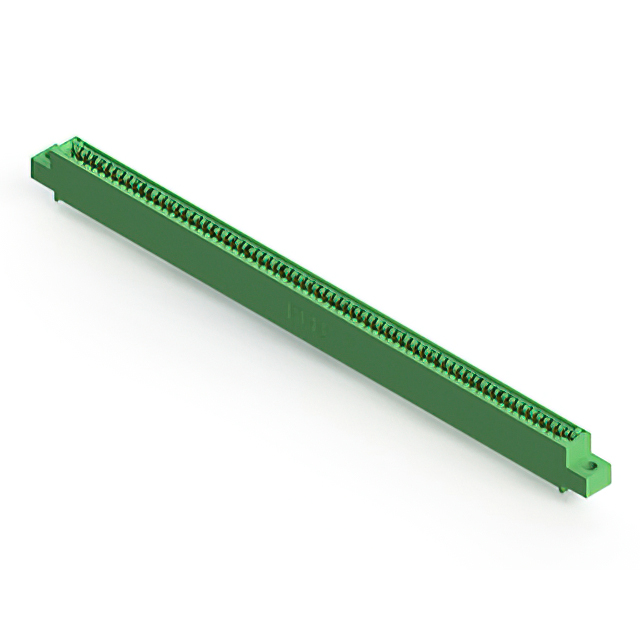

845-071-525-404
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 71 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-071-525-404
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 71 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-071-525-404 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 71 |
| Number of Positions/Bay/Row [custom] | 71 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-071 Series
...
| Part | Number of Positions/Bay/Row [custom] | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Termination | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Termination Rows | Contact Material | Contact Type | Card Type | Mounting Type | Color | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 71 | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Solder | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 71 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Copper Alloy | Cantilever | Non Specified - Single Edge | Through Hole | Green | Female | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | ||
EDAC Inc. | 71 | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Solder | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 71 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Copper Alloy | Cantilever | Non Specified - Single Edge | Through Hole | Green | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | ||
EDAC Inc. | 71 | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Solder | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 71 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Copper Alloy | Cantilever | Non Specified - Single Edge | Through Hole | Green | Female | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | ||
EDAC Inc. | 71 | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Solder Eyelet(s) | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 71 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Copper Alloy | Cantilever | Non Specified - Single Edge | Through Hole | Green | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | ||
EDAC Inc. | 71 | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Solder | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 71 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Copper Alloy | Cantilever | Non Specified - Single Edge | Through Hole Right Angle | Green | Female | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 71 | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Solder | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 71 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Copper Alloy | Cantilever | Non Specified - Single Edge | Through Hole Right Angle | Green | Female | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | ||
EDAC Inc. | 71 | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Wire Wrap | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 71 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Copper Alloy | Cantilever | Non Specified - Single Edge | Through Hole | Green | Female | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 71 | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Solder | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 71 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Copper Alloy | Cantilever | Non Specified - Single Edge | Through Hole Right Angle | Green | Female | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 71 | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Wire Wrap | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 71 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Copper Alloy | Cantilever | Non Specified - Single Edge | Through Hole | Green | Female | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||
EDAC Inc. | 71 | 1 | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Wire Wrap | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 71 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Copper Alloy | Cantilever | Non Specified - Single Edge | Through Hole | Green | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 149.12 | |
Description
General part information
845-071 Series
71 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
