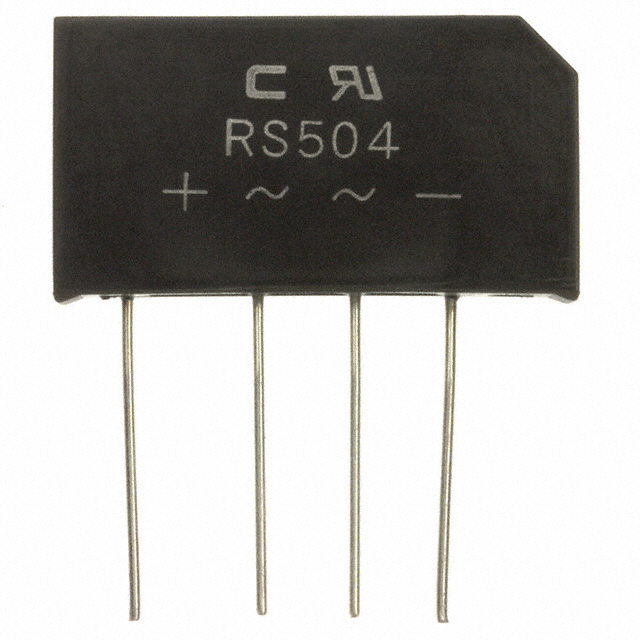

RS504-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 5A RS5

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 5A RS5

Technical Specifications

Parameters and characteristics for this part

Specification	RS504-G

Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, RS-5
Supplier Device Package	RS5
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	400 V

BRIDGE RECT 1PHASE 400V 5A RS5

Part	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Current - Average Rectified (Io)	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Technology	Package / Case	Diode Type
Comchip Technology RS504-G	RS5	10 µA	125 ¯C	-55 °C	5 A	Through Hole	1 V	400 V	Standard	4-SIP, RS-5	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole RS5
