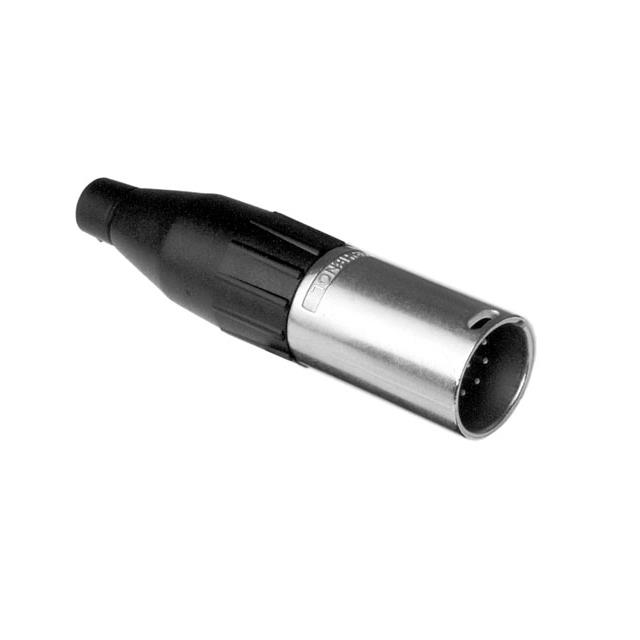

AC7M BULK

Active

Amphenol Sine Systems Corp

METAL PLUG STR CORD 7 PIN

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL PLUG STR CORD 7 PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 8.78

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AC7M BULK	AC7M Series

Applications	Audio	Audio
Backshell Material, Plating	Polyphenylene Ether (PPE)	Polyphenylene Ether (PPE)
Color	Silver	Black, Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5 A	5 A
Fastening Type	Latch Holder	Latch Holder
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	7	7
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Black, Nickel
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Unshielded	Unshielded

METAL PLUG STR CORD 7 PIN

Part	Contact Material	Shell Material	Backshell Material, Plating	Applications	Color	Mounting Type	Features	Contact Finish - Mating	Shielding	Connector Type	Material Flammability Rating	Shell Size - Insert	Number of Positions	Orientation	Fastening Type	Ingress Protection	Current Rating (Amps)	Shell Finish	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol Sine Systems Corp AC7MB BULK	Brass	Zinc Die Cast	Polyphenylene Ether (PPE)	Audio	Black	Free Hanging (In-Line)	Backshell, Cable Clamp	Gold	Unshielded	Male Pins, Receptacle	UL94 V-0	XLR	7	Keyed	Latch Holder	IP40	5 A	Black	Metal	-25 °C	75 ░C
Amphenol Sine Systems Corp AC7M BULK	Brass	Zinc Die Cast	Polyphenylene Ether (PPE)	Audio	Silver	Free Hanging (In-Line)	Backshell, Cable Clamp	Gold	Unshielded	Male Pins, Receptacle	UL94 V-0	XLR	7	Keyed	Latch Holder	IP40	5 A	Nickel	Metal	-25 °C	75 ░C
