HS2P3M20-BP

Active

Switchcraft Inc.

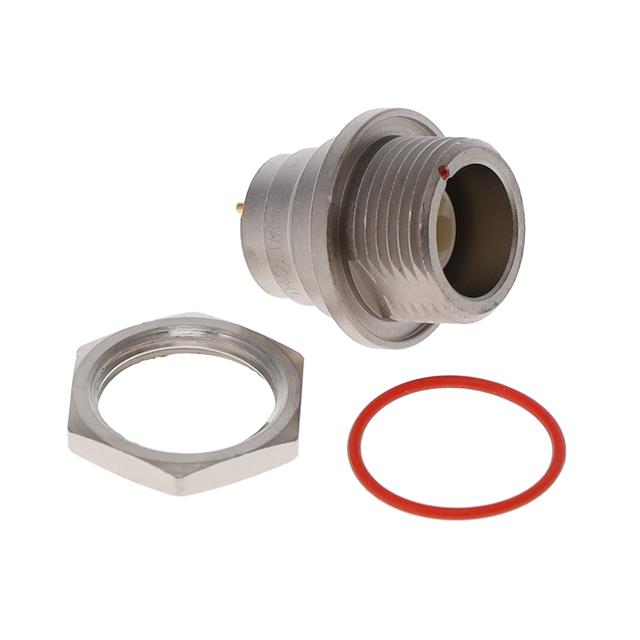

CONN RCPT MALE 3POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 3POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P3M20-BP	HS2P3M Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE 3POS GOLD SOLDER

Part	Shell Material	Shielding	Shell Finish	Applications	Primary Material	Orientation	Ingress Protection	Color	Voltage Rating	Termination	Connector Type	Mounting Type	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Mounting Feature	Insert Material	Contact Material
Switchcraft Inc. HS2P3M20-BP	Copper Alloy	Shielded	Electroless Nickel	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Metal	Keyed	IP66, IP67, IP68	Silver	125 VAC	Solder	Male Pins, Receptacle	Panel Mount, Through Hole	Gold	135 °C	-40 °C	Push-Pull	Bulkhead - Front Side Nut	Liquid Crystal Polymer (LCP)	Copper Alloy
Switchcraft Inc. HS2P3M20-BPE	Copper Alloy	Shielded	Electroless Nickel	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Metal	Keyed	IP66, IP67, IP68	Silver	125 VAC	Solder	Male Pins, Receptacle	Panel Mount, Through Hole	Gold	135 °C	-40 °C	Push-Pull	Bulkhead - Front Side Nut	Liquid Crystal Polymer (LCP)	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
