LB16WKG01-GJ

Active

NKK Switches

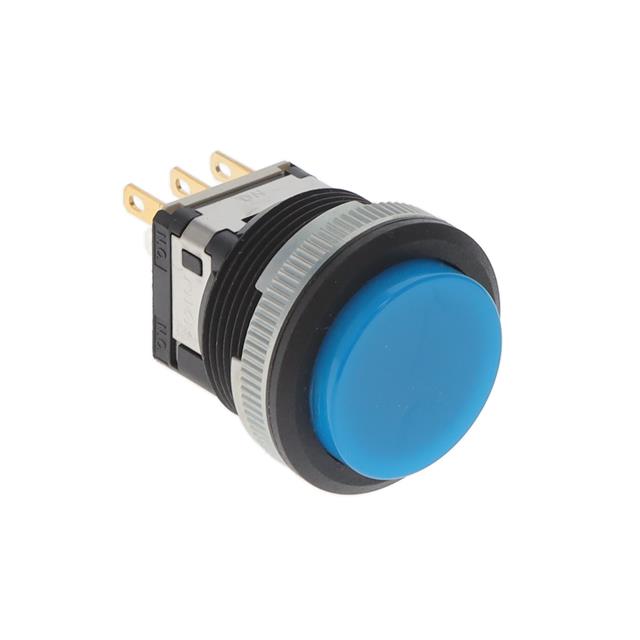

PUSHBUTTON SWITCH, LB SERIES, 22 MM, SPDT, ON-ON, ROUND, BLUE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LB16WKG01-GJ

Active

NKK Switches

PUSHBUTTON SWITCH, LB SERIES, 22 MM, SPDT, ON-ON, ROUND, BLUE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB16WKG01-GJ

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Blue
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

LB16WKG01 Series

Part	Actuator Type	Color - Actuator/Cap	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Illumination Type, Color	Termination Style	Termination Style	Termination Style	Circuit	Type	Actuator Marking	Current Rating (Amps)	Voltage Rating - DC	Illumination Voltage (Nominal)	Ingress Protection	Panel Cutout Dimensions [diameter]	Mechanical Life	Switch Function	Mounting Type
NKK Switches LB16WKG01-6F-JB	Button Round	Clear	100000 Cycles	50 °C	-25 °C	28 V	Green LED	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Illuminated Standard	No Marking	0.4 VA	28 V	3.3 VDC	IP65 - Dust Tight Water Resistant	22 mm	200000 Cycles	On-On	Panel Mount Front
NKK Switches LB16WKG01-6B-JB	Button Round	Clear	100000 Cycles	50 °C	-25 °C	28 V	LED White	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Illuminated Standard	No Marking	0.4 VA	28 V	3.3 VDC	IP65 - Dust Tight Water Resistant	22 mm	200000 Cycles	On-On	Panel Mount Front
NKK Switches LB16WKG01-5C24-JC	Button Round	Clear (Red Filter/Diffuser)	100000 Cycles	50 °C	-25 °C	28 V	LED Red	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Illuminated Standard	No Marking	0.4 VA	28 V	24 V	IP65 - Dust Tight Water Resistant	22 mm	200000 Cycles	On-On	Panel Mount Front
NKK Switches LB16WKG01-5C-JC	Button Round	Clear (Red Filter/Diffuser)	100000 Cycles	50 °C	-25 °C	28 V	LED Red	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Illuminated Standard	No Marking	0.4 VA	28 V	1.9 VDC	IP65 - Dust Tight Water Resistant	22 mm	200000 Cycles	On-On	Panel Mount Front
NKK Switches LB16WKG01-CJ	Button Round	Red	100000 Cycles	70 °C	-25 °C	28 V		0.11 in	Quick Connect Solder	2.8 mm	SPDT	Standard	No Marking	0.4 VA	28 V		IP65 - Dust Tight Water Resistant	22 mm	200000 Cycles	On-On	Panel Mount Front
NKK Switches LB16WKG01-5C-JB	Button Round	Clear	100000 Cycles	50 °C	-25 °C	28 V	LED Red	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Illuminated Standard	No Marking	0.4 VA	28 V	1.9 VDC	IP65 - Dust Tight Water Resistant	22 mm	200000 Cycles	On-On	Panel Mount Front
NKK Switches LB16WKG01-5F-JB	Button Round	Clear	100000 Cycles	50 °C	-25 °C	28 V	Green LED	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Illuminated Standard	No Marking	0.4 VA	28 V	2.1 VDC	IP65 - Dust Tight Water Resistant	22 mm	200000 Cycles	On-On	Panel Mount Front
NKK Switches LB16WKG01-5C12-JC	Button Round	Clear (Red Filter/Diffuser)	100000 Cycles	50 °C	-25 °C	28 V	LED Red	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Illuminated Standard	No Marking	0.4 VA	28 V	12 VDC	IP65 - Dust Tight Water Resistant	22 mm	200000 Cycles	On-On	Panel Mount Front
NKK Switches LB16WKG01-5F-JF	Button Round	Clear	100000 Cycles	50 °C	-25 °C	28 V	Green LED	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Illuminated Standard	No Marking	0.4 VA	28 V	2.1 VDC	IP65 - Dust Tight Water Resistant	22 mm	200000 Cycles	On-On	Panel Mount Front
NKK Switches LB16WKG01-GJ	Button Round	Blue	100000 Cycles	70 °C	-25 °C	28 V		0.11 in	Quick Connect Solder	2.8 mm	SPDT	Standard	No Marking	0.4 VA	28 V		IP65 - Dust Tight Water Resistant	22 mm	200000 Cycles	On-On	Panel Mount Front
