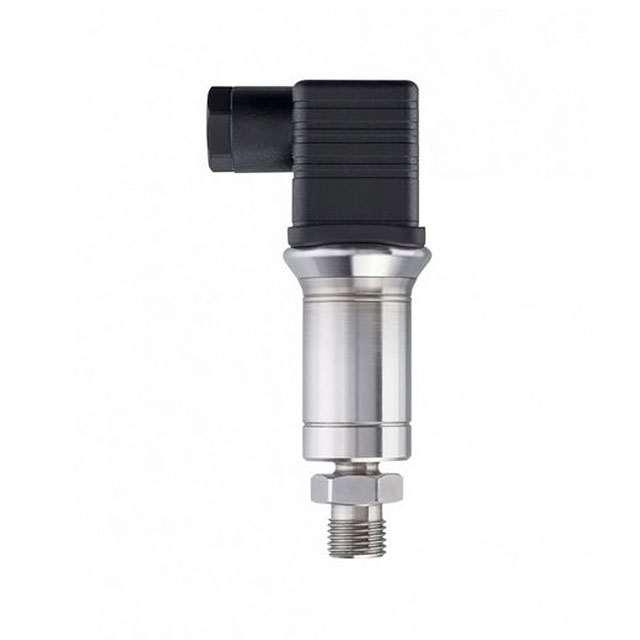

ILSEU-GI360-D

Obsolete

Sensata Technologies

SENSOR PRESSURE 0-360WG 0.5-4.5V

Search across all available documentation for this part.

Obsolete

Sensata Technologies

SENSOR PRESSURE 0-360WG 0.5-4.5V

Technical Specifications

Parameters and characteristics for this part

Specification	ILSEU-GI360-D

Current	28 mA
Material - Housing & Prism	316 Stainless Steel, 303 Stainless Steel
Mounting Type	Male 1/4" (6.35mm) NPT
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration [Max]	4.5 V
Output Configuration [Min]	0.5 V
Output Type	Analog (Diaphragm)
Type	Liquid
Voltage Rating [Max]	32 V
Voltage Rating [Min]	9 V

SENSOR PRESSURE 0-360WG 0.5-4.5V

Part	Output Configuration [Max]	Output Configuration [Min]	Current	Mounting Type	Output Type	Voltage Rating [Max]	Voltage Rating [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Material - Housing & Prism	Type
Sensata Technologies ILSEU-GI360-D	4.5 V	0.5 V	28 mA	Male 1/4" (6.35mm) NPT	Analog (Diaphragm)	32 V	9 V	125 °C	-40 °C	303 Stainless Steel, 316 Stainless Steel	Liquid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SENSOR PRESSURE 0-360WG 0.5-4.5V

Technical documentation and resources

No documents available
