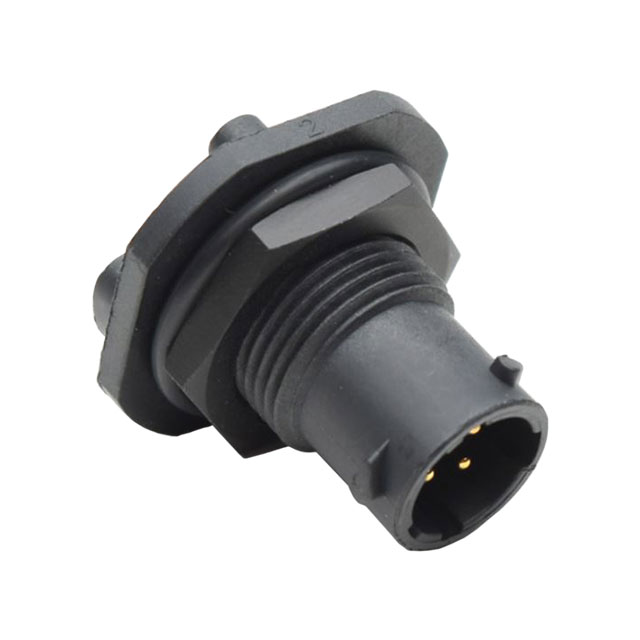

RTS78N4P
ActiveAmphenol Sine Systems Corp
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
RTS78N4P
ActiveAmphenol Sine Systems Corp
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS78N4P |
|---|---|
| Applications | Instrumentation, Automation, Transportation, Marine, Telecom, Industrial |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7 A |
| Fastening Type | Bayonet Lock |
| Features | Board Guide |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Chloroprene Rubber (CR) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 8-4 |
| Shielding | Unshielded |
| Voltage Rating | 250 VAC |
RTS78 Series
| Part | Fastening Type | Color | Primary Material | Applications | Voltage Rating | Contact Material | Contact Finish - Mating | Ingress Protection | Mounting Feature | Current Rating (Amps) | Material Flammability Rating | Shell Size - Insert | Features | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Orientation | Number of Positions | Connector Type | Insert Material | Includes | Housing Color | Contact Shape | Contact Size | Type | Note | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Bayonet Lock | Black | Plastic | Automation Industrial Instrumentation Marine Telecom Transportation | 250 VAC | Copper Alloy | Gold | IP67 IP69K | Bulkhead - Front Side Nut | 7 A | UL94 V-0 | 8-4 | Board Guide | -40 °C | 105 ░C | Unshielded | N | 4 | Receptacle Female Sockets | Chloroprene Rubber (CR) | |||||||
Amphenol Sine Systems Corp | Bayonet Lock | Black | Plastic | Automation Industrial Instrumentation Marine Telecom Transportation | 250 VAC | Copper Alloy | Gold | IP67 IP69K | Bulkhead - Front Side Nut | 7 A | UL94 V-0 | 8-4 | Board Guide | -40 °C | 105 ░C | Unshielded | N | 4 | Male Pins Receptacle | Chloroprene Rubber (CR) | |||||||
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Bulkhead - Front Side Nut | UL94 V-0 | 8-3 | -40 °C | 125 °C | Unshielded | N | Receptacle Housing | Thermoplastic | 1 Connector 1 Gasket 1 Nut 1 O-Ring | Black | Circular | 20 | For Female Sockets | Contacts Not Included | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.66 | |
| 10 | $ 15.14 | |||
| 25 | $ 13.70 | |||
| 50 | $ 12.72 | |||
| 100 | $ 11.84 | |||
| 250 | $ 10.80 | |||
| 500 | $ 10.10 | |||
| 1000 | $ 9.51 | |||
Description
General part information
RTS78 Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
