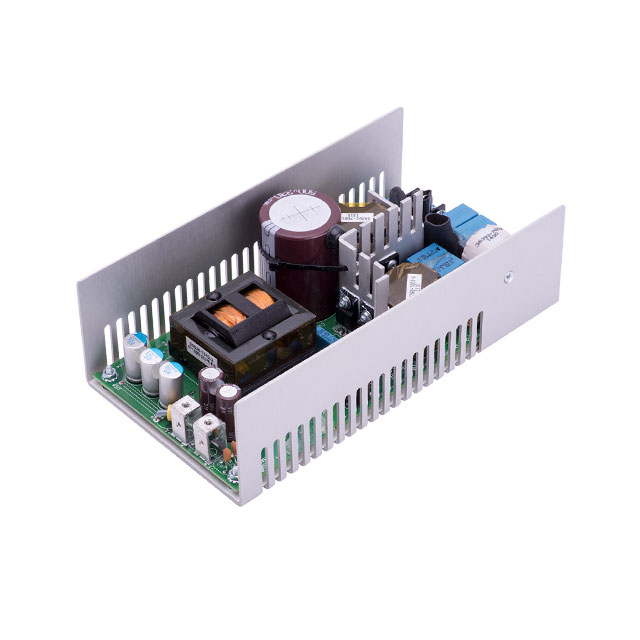

LU500S24T

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 500W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 500W

Technical Specifications

Parameters and characteristics for this part

Specification	LU500S24T

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	20.8 A
Efficiency	93 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	500 W
Type	Open Frame
Voltage - Input [Max]	305 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Current - Output 1	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Voltage - Isolation	Type	Minimum Load Required	Number of Outputs	Mounting Type	Power (Watts)	Approval Agency	Applications	Features
SL POWER / Advanced Energy LU500S24T	20.8 A	24 V	-10 °C	70 °C	305 VAC	90 VAC	93 %	3000 V	Open Frame		1	Chassis Mount	500 W	CE	ITE (Commercial)	DC Input Capable Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 305 VAC Input
