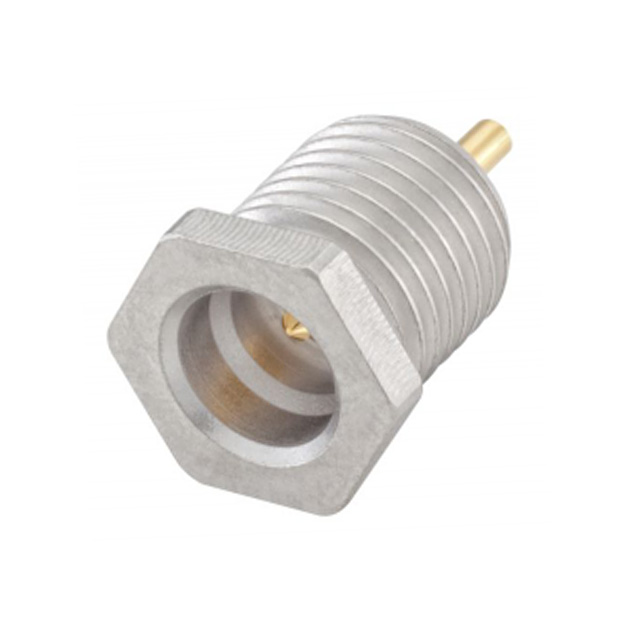

119S601-500N5

Active

Rosenberger

CONN PSMP PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN PSMP PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	119S601-500N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	PSMP
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Limited Detent
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Panel Mount, Threaded
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Frequency - Max [Max]	Connector Style	Features	Housing Color	Dielectric Material	Body Finish	Center Contact Material	Body Material	Number of Ports	Connector Type	Voltage Rating	Center Contact Plating	Impedance	Mounting Type	Contact Termination	Shield Termination
Rosenberger 119S601-500N5	-65 ░C	165 °C	Snap-On	10 GHz	PSMP	Limited Detent	Silver	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Brass	1	Male Pin Plug	480 V	Gold	50 Ohms	Panel Mount Threaded	Solder	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PSMP Connector Plug, Male Pin 50 Ohms Panel Mount, Threaded Solder
