Description

General part information

316-93 Series

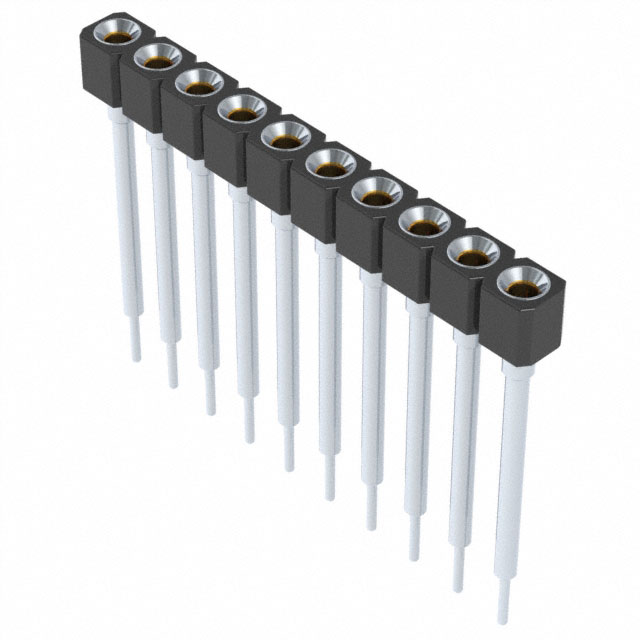

10 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold

Technical Specifications

Parameters and characteristics for this part

Specification	316-93-110-41-001000

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	200 µin
Contact Length - Post	0.118 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.594 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Style	Board
Termination	Solder

316-93 Series

...

Part	Contact Type	Current Rating	Contact Length - Post	Insulation Height	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Number of Positions	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Post	Number of Rows	Contact Shape	Termination	Contact Material	Number of Positions Loaded	Connector Type	Style	Pitch - Mating	Material Flammability Rating	Insulation Material	Contact Finish Thickness - Post	Fastening Type
Mill-Max Manufacturing Corp. 316-93-131-41-008000	Female Socket	3 A	0.118 in	0.472 in	Gold	125 °C	-55 °C	Through Hole	31	30 µin	Black	Tin-Lead	1	Circular	Solder	Beryllium Copper	All	Elevated Socket	Board	0.1 in	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	Push-Pull
Mill-Max Manufacturing Corp. 316-93-125-61-003000	Female Socket	3 A	0.118 in	0.315 in	Gold	125 °C	-55 °C	Through Hole	25	30 µin	Black	Tin-Lead	1	Circular	Solder	Beryllium Copper	All	Elevated Socket	Board	0.1 in	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	Push-Pull
Mill-Max Manufacturing Corp. 316-93-131-61-001000	Female Socket	3 A	0.118 in	0.594 in	Gold	125 °C	-55 °C	Through Hole	31	30 µin	Black	Tin-Lead	1	Circular	Solder	Beryllium Copper	All	Elevated Socket	Board	0.1 in	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	Push-Pull
Mill-Max Manufacturing Corp. 316-93-106-61-006000	Female Socket	3 A	0.118 in	0.236 in	Gold	125 °C	-55 °C	Through Hole	6	30 µin	Black	Tin-Lead	1	Circular	Solder	Beryllium Copper	All	Elevated Socket	Board	0.1 in	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	Push-Pull
Mill-Max Manufacturing Corp. 316-93-110-61-003000	Female Socket	3 A	0.118 in	0.315 in	Gold	125 °C	-55 °C	Through Hole	10	30 µin	Black	Tin-Lead	1	Circular	Solder	Beryllium Copper	All	Elevated Socket	Board	0.1 in	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	Push-Pull
Mill-Max Manufacturing Corp. 316-93-110-41-001000	Female Socket	3 A	0.118 in	0.594 in	Gold	125 °C	-55 °C	Through Hole	10	30 µin	Black	Tin-Lead	1	Circular	Solder	Beryllium Copper	All	Elevated Socket	Board	0.1 in	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	Push-Pull
Mill-Max Manufacturing Corp. 316-93-139-61-001000	Female Socket	3 A	0.118 in	0.594 in	Gold	125 °C	-55 °C	Through Hole	39	30 µin	Black	Tin-Lead	1	Circular	Solder	Beryllium Copper	All	Elevated Socket	Board	0.1 in	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	Push-Pull
Mill-Max Manufacturing Corp. 316-93-151-61-001000	Female Socket	3 A	0.118 in	0.594 in	Gold	125 °C	-55 °C	Through Hole	51	30 µin	Black	Tin-Lead	1	Circular	Solder	Beryllium Copper	All	Elevated Socket	Board	0.1 in	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	Push-Pull
Mill-Max Manufacturing Corp. 316-93-109-61-001000	Female Socket	3 A	0.118 in	0.594 in	Gold	125 °C	-55 °C	Through Hole	9	30 µin	Black	Tin-Lead	1	Circular	Solder	Beryllium Copper	All	Elevated Socket	Board	0.1 in	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	Push-Pull
Mill-Max Manufacturing Corp. 316-93-153-41-003000	Female Socket	3 A	0.118 in	0.315 in	Gold	125 °C	-55 °C	Through Hole	53	30 µin	Black	Tin-Lead	1	Circular	Solder	Beryllium Copper	All	Elevated Socket	Board	0.1 in	UL94 V-0	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	Push-Pull
