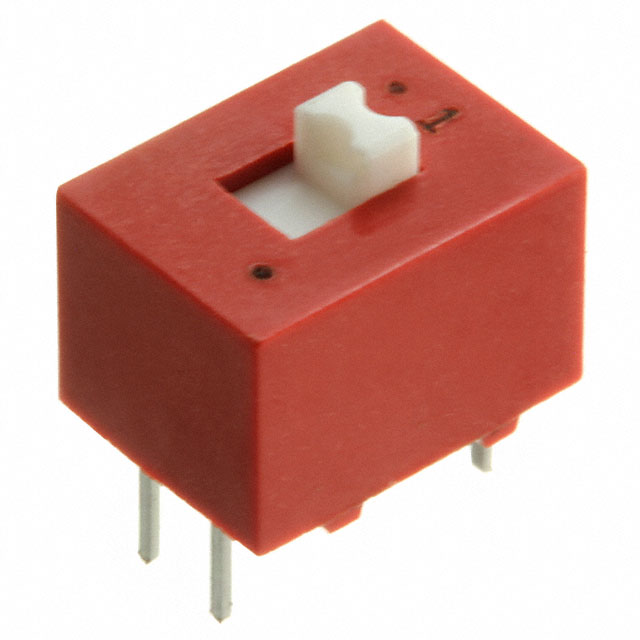

78J01T

Active

Grayhill Inc.

SWITCH SLIDE DIP SPDT 0.15A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPDT 0.15A 30V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPDT 0.15A 30V

Part	Termination Style	Circuit	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Contact Material	Height Above Board [z]	Height Above Board [z]	Length	Length	Actuator Level	Electrical Life	Mechanical Life	Actuator Type	Washable	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Body Material	Number of Positions	Voltage Rating
Grayhill Inc. 78J01T	PC Pin	SPDT	0.1 in	Full	2.54 mm	Gold	Copper Alloy	8 mm	0.315 in	7.11 mm	0.28 "	Raised	2000 Steps	2000 Cycles	Slide (Standard)		85 °C	-40 °C	Through Hole	Thermoplastic	1	30 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPDT 1 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
