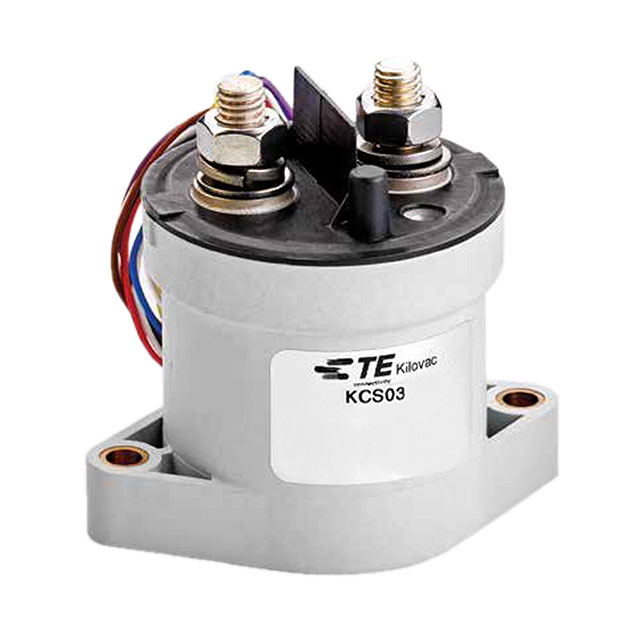

KCS03X012EAAA

Active

TE Connectivity Aerospace, Defense and Marine

RELAY CONTACTOR SPST 600A 12V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY CONTACTOR SPST 600A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY CONTACTOR SPST 600A 12V

Part	Termination Style	Contact Form	Features	Switching Voltage	Coil Resistance	Release Time	Must Operate Voltage	Coil Power	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Mounting Type	Contact Rating (Current)	Operate Time	Must Release Voltage	Coil Current
TE Connectivity Aerospace, Defense and Marine KCS03X012EAAA	Stud, Wire Leads	SPST-NO (DM) (1 Form X)	Sealed - Hermetically	600 VDC	47 Ohms	5 ms	9 VDC	3 W	-40 °C	105 ░C	12 VDC	Chassis Mount	600 A	20 ms	5 VDC	255 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY CONTACTOR SPST 600A 12V

Technical documentation and resources
