BHR-30-HUA

Active

Adam Tech

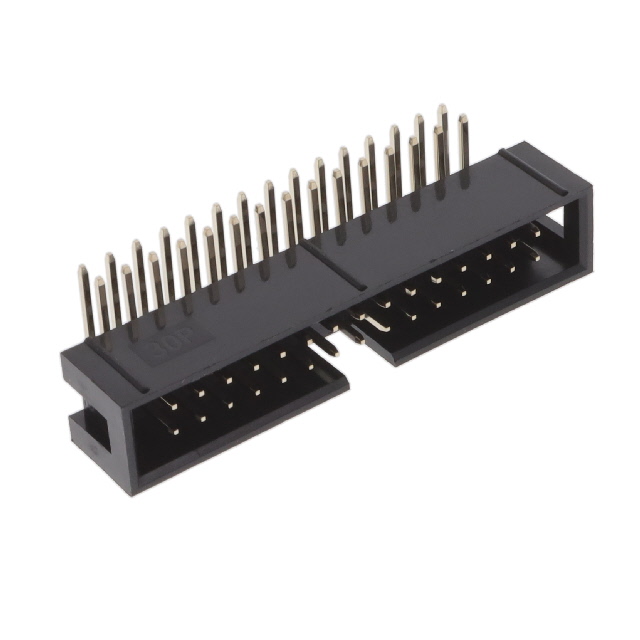

CONN HEADER R/A 30POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 30POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BHR-30-HUA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	0.356 in
Insulation Height [z]	9.05 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Material	Termination	Contact Finish Thickness - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Shape	Fastening Type	Features	Contact Type	Number of Positions	Contact Finish - Post	Voltage Rating	Connector Type	Number of Positions Loaded	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Material Flammability Rating	Contact Finish Thickness - Mating	Insulation Material	Style	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
Adam Tech BHR-30-HUA	Brass	Solder	Flash	Gold	0.1 in	2.54 mm	Through Hole Right Angle	Square	Push-Pull	Keying Slot	Male Pin	30	Gold	250 VAC	Header	All	Black	0.134 in	3.4 mm	-40 °C	105 ░C	2	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Board to Board Cable	0.356 in	9.05 mm
Adam Tech BHR-30-VUA-ML	Brass	Solder	Flash	Gold	0.1 in	2.54 mm	Through Hole	Square	Push-Pull	Keying Slot	Male Pin	30	Gold	250 VAC	Header	All	Black			-40 °C	105 ░C	2	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Board to Board Cable			3 A	0.13 in	3.3 mm	0.358 in	9.1 mm
