345-140-520-208
ActiveEDAC Inc.

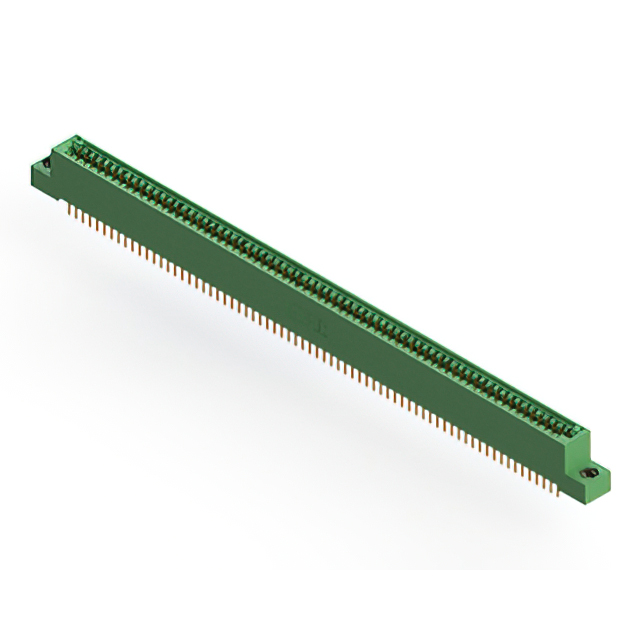

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 140 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-140-520-208
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 140 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-140-520-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 140 |
| Number of Positions/Bay/Row [custom] | 70 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-140 Series
...
| Part | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Contact Material | Termination Rows | Material - Insulation | Number of Positions/Bay/Row [custom] | Number of Rows | Pitch [x] | Pitch [x] | Contact Finish | Contact Type | Mounting Type | Number of Positions | Read Out | Contact Finish Thickness | Contact Finish Thickness | Termination | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Green | Copper Alloy | 2 | Polyester Thermoplastic | 70 | 2 | 2.54 mm | 0.1 in | Gold | Cantilever | Through Hole | 140 | Dual | 10 Áin | 0.25 Ám | Wire Wrap | |||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Green | Copper Alloy | 2 | Polyester Thermoplastic | 70 | 2 | 2.54 mm | 0.1 in | Gold | Cantilever | Board Edge Straddle Mount | 140 | Dual | 10 Áin | 0.25 Ám | Solder | Card Extender | ||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 4-40 Threaded Insert Top Mount Opening | Green | Copper Alloy | 2 | Polyester Thermoplastic | 70 | 2 | 2.54 mm | 0.1 in | Gold | Cantilever | Through Hole | 140 | Dual | 10 Áin | 0.25 Ám | Wire Wrap | Card Guides | ||||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Side Mount Opening Unthreaded | Green | Copper Alloy | 2 | Polyester Thermoplastic | 70 | 2 | 2.54 mm | 0.1 in | Gold | Cantilever | Board Edge Straddle Mount | 140 | Dual | 10 Áin | 0.25 Ám | Solder | Card Extender | 3.25 mm | 0.128 in | ||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Flush Mount M3 Threaded Insert Top Opening | Green | Copper Alloy | 2 | Polyester Thermoplastic | 70 | 2 | 2.54 mm | 0.1 in | Gold | Cantilever | Through Hole | 140 | Dual | 10 Áin | 0.25 Ám | Solder | |||||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 4-40 Flush Mount Threaded Insert Top Opening | Green | Copper Alloy | 2 | Polyester Thermoplastic | 70 | 2 | 2.54 mm | 0.1 in | Gold | Cantilever | Through Hole | 140 | Dual | 10 Áin | 0.25 Ám | Solder | |||||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Green | Copper Alloy | 2 | Polyester Thermoplastic | 70 | 2 | 2.54 mm | 0.1 in | Gold | Cantilever | Board Edge Straddle Mount | 140 | Dual | 10 Áin | 0.25 Ám | Solder | Card Extender | ||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | Copper Alloy | 2 | Polyester Thermoplastic | 70 | 2 | 2.54 mm | 0.1 in | Gold | Cantilever | Through Hole | 140 | Dual | 10 Áin | 0.25 Ám | Solder | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 4-40 Threaded Insert Top Mount Opening | Green | Copper Alloy | 2 | Polyester Thermoplastic | 70 | 2 | 2.54 mm | 0.1 in | Gold | Cantilever | Through Hole | 140 | Dual | 10 Áin | 0.25 Ám | Wire Wrap | Card Guides | ||||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 4-40 Flush Mount Threaded Insert Top Opening | Green | Copper Alloy | 2 | Polyester Thermoplastic | 70 | 2 | 2.54 mm | 0.1 in | Gold | Cantilever | Through Hole | 140 | Dual | 10 Áin | 0.25 Ám | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-140 Series
140 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
