FWS-04-02-T-S-RA - FWS-04-02-T-S-RA

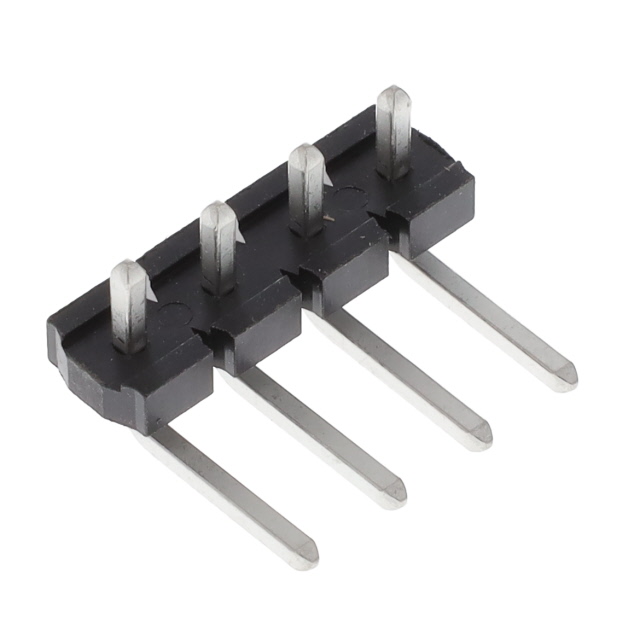

FWS-04-02-T-S-RA

Active
Samtec Inc.

CONN UNSHROUDED HEADER HDR 4 POS 5.08MM SOLDER RA THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFWS DatasheetDatasheet+1
FWS-04-02-T-S-RA - FWS-04-02-T-S-RA

FWS-04-02-T-S-RA

Active
Samtec Inc.

CONN UNSHROUDED HEADER HDR 4 POS 5.08MM SOLDER RA THRU-HOLE BULK

Deep-Dive with AI

DocumentsFWS DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationFWS-04-02-T-S-RA
Connector TypeHeader
Contact Finish - PostTin
Contact Length - Mating [x]0.318 "
Contact Length - Mating [x]8.08 mm
Contact Length - Post0.18 in
Contact Length - Post4.57 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)11.4 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.1 in
Insulation Height2.54 mm
Insulation MaterialPolyester, Glass Filled
Mounting TypeThrough Hole, Right Angle
Number of Positions4
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Pitch - Mating5.08 mm
Pitch - Mating0.2 in
ShroudingUnshrouded
TerminationSolder
Voltage Rating500 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.24
10$ 1.71
100$ 1.32
500$ 1.11
1000$ 1.03
5000$ 0.88
10000$ 0.84

Description

General part information

FWS-04 Series

Connector Header Through Hole, Right Angle 4 position 0.200" (5.08mm)
