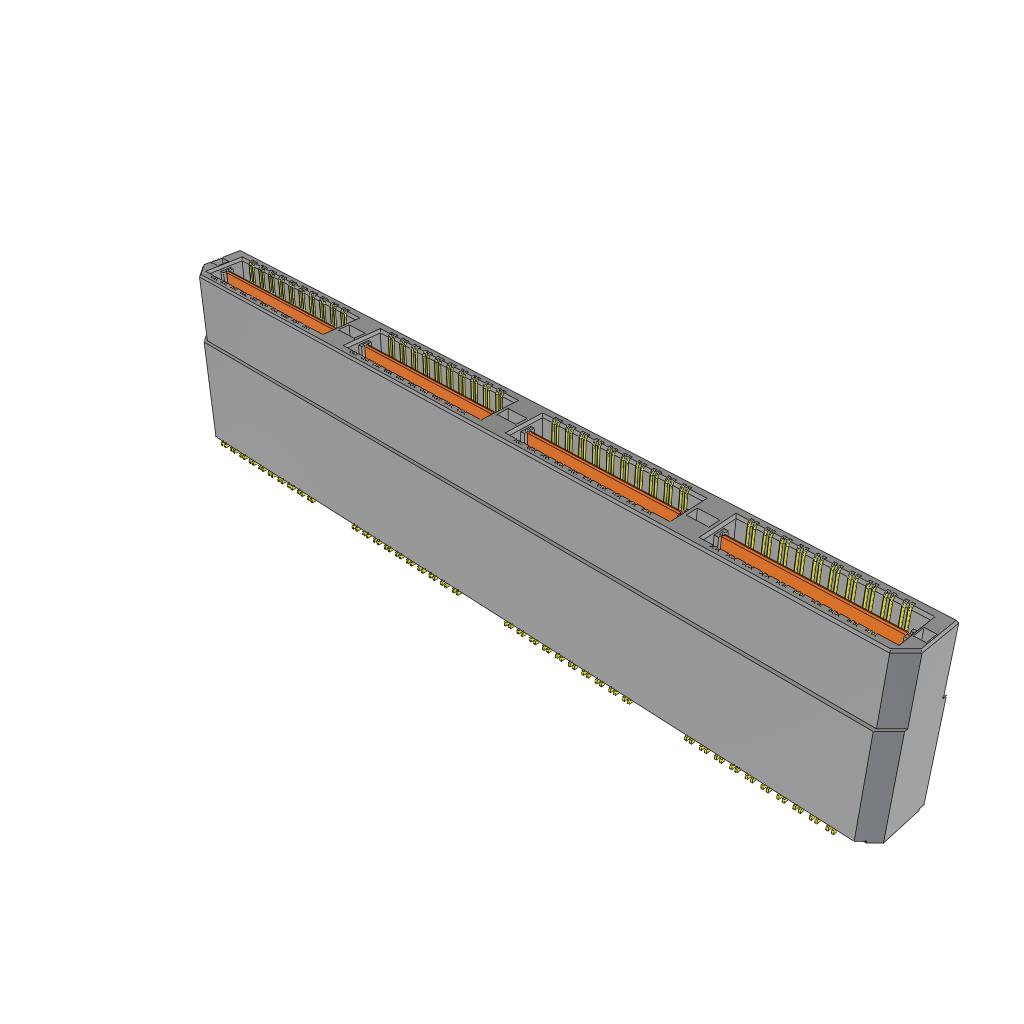

QTH-080-05-F-D-DP-A

Active

Samtec Inc.

0.5MM 2 160P VERTICAL WELDING SMD,P=0.5MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet QTH-020-01-F-D-DP-A Datasheet 02 +2

QTH-080-05-F-D-DP-A

Active

Samtec Inc.

0.5MM 2 160P VERTICAL WELDING SMD,P=0.5MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Deep-Dive with AI

DocumentsDatasheet QTH-020-01-F-D-DP-A Datasheet 02 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTH-080-05-F-D-DP-A

Connector Type	Differential Pair Array, Male
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Height Above Board	18.24 mm
Height Above Board	0.718 in
Mated Stacking Heights	19 mm
Mounting Type	Surface Mount
Number of Positions	160
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QTH-080 Series

Part	Connector Type	Number of Rows	Height Above Board	Height Above Board	Mounting Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QTH-080-01-F-D-DP-A-K	Differential Pair Array Male	2	4.06 mm	0.16 in	Surface Mount	5 mm	0.5 mm	0.02 in	Gold	3 Áin	0.076 Ám	Board Guide Ground Bus (Plane) Pick and Place	160
Samtec Inc. QTH-080-04-L-D-DP-A	Differential Pair Array Male	2	15.24 mm	0.6 in	Surface Mount	16 mm	0.5 mm	0.02 in	Gold	10 Áin	0.25 Ám		160
Samtec Inc. QTH-080-01-C-D-DP-A	Differential Pair Array Male	2	4.06 mm	0.16 in	Surface Mount	5 mm	0.5 mm	0.02 in	Gold	50 µin	1.27 µm		160
Samtec Inc. QTH-080-01-F-D-DP-A	Differential Pair Array Male	2	4.06 mm	0.16 in	Surface Mount	5 mm	0.5 mm	0.02 in	Gold	3 Áin	0.076 Ám		160
Samtec Inc. QTH-080-08-F-D-DP-A	Differential Pair Array Male	2			Surface Mount	30 mm	0.5 mm	0.02 in	Gold	3 Áin	0.076 Ám		160	1.151 in	29.24 mm
Samtec Inc. QTH-080-07-L-D-DP-A	Differential Pair Array Male	2	24.23 mm	0.954 in	Surface Mount	25 mm	0.5 mm	0.02 in	Gold	10 Áin	0.25 Ám		160
Samtec Inc. QTH-080-02-L-D-DP-A	Differential Pair Array Male	2	7.26 mm	0.286 "	Surface Mount	8 mm	0.5 mm	0.02 in	Gold	10 Áin	0.25 Ám		160
Samtec Inc. QTH-080-05-F-D-DP-A	Differential Pair Array Male	2	18.24 mm	0.718 in	Surface Mount	19 mm	0.5 mm	0.02 in	Gold	3 Áin	0.076 Ám		160
Samtec Inc. QTH-080-01-L-D-DP	Differential Pair Array Male	2	4.06 mm	0.16 in	Surface Mount	5 mm	0.5 mm	0.02 in	Gold	10 Áin	0.25 Ám	Ground Bus (Plane)	160
Samtec Inc. QTH-080-03-F-D-DP-A	Differential Pair Array Male	2	10.27 mm	0.404 in	Surface Mount	11 mm	0.5 mm	0.02 in	Gold	3 Áin	0.076 Ám		160

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	18	$ 19.93
LCSC	Piece	1	$ 55.27
		198	$ 22.05
		504	$ 21.32
		1008	$ 20.95
