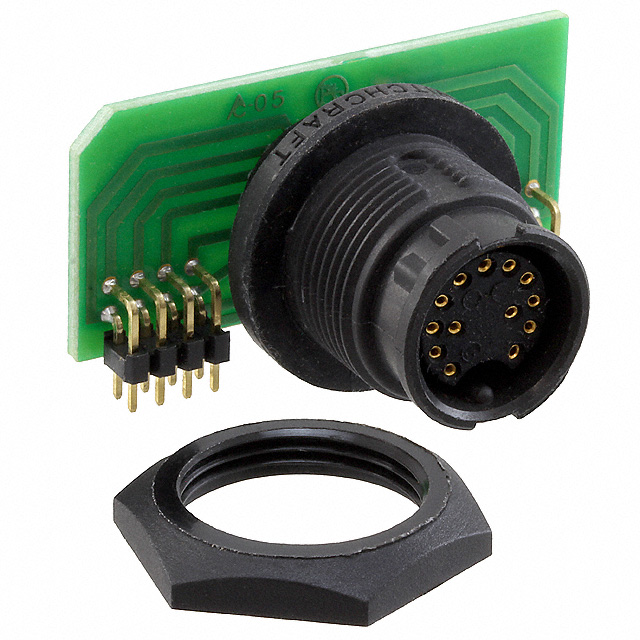

EN3P13FRAPCBW
ActiveSwitchcraft Inc.
CONN RCPT FMALE 13POS SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P13FRAPCBW
ActiveSwitchcraft Inc.
CONN RCPT FMALE 13POS SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P13FRAPCBW | EN3P13 Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 2 - 3 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 13 | 13 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Circuit Board, Solder | Circuit Board, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P13 Series
CONN RCPT MALE 13POS GOLD SOLDER
| Part | Termination | Fastening Type | Ingress Protection | Shielding | Applications | Mounting Type | Material Flammability Rating | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Insert Material | Connector Type | Current Rating (Amps) | Mounting Feature | Voltage Rating | Primary Material | Contact Finish - Mating | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P13MRAPCBN | Circuit Board, Solder | Bayonet Lock | IP66/IP68 | Unshielded | General Purpose, Instrumentation, Marine, Medical | Panel Mount, Right Angle, Through Hole | UL94 V-0 | Keyed | 65 °C | -40 °C | Copper Alloy | Elastomer | Male Pins, Receptacle | 2 A | Bulkhead - Front Side Nut | 250 VAC | Plastic | Gold | 13 | Black |
Switchcraft Inc. EN3P13M26SX | Bayonet Lock | IP66/IP68 | Unshielded | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Keyed | 65 °C | -40 °C | Copper Alloy | Elastomer | Male Pins, Receptacle | 3 A | Bulkhead - Front Side Nut | 250 VAC | Plastic | Gold | 13 | Black | ||
Switchcraft Inc. EN3P13F26SX | Bayonet Lock | IP66/IP68 | Unshielded | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Keyed | 65 °C | -40 °C | Copper Alloy | Elastomer | Receptacle, Female Sockets | 3 A | Bulkhead - Front Side Nut | 250 VAC | Plastic | Gold | 13 | Black | ||
Switchcraft Inc. EN3P13FRAPCBW | Circuit Board, Solder | Bayonet Lock | IP66/IP68 | Unshielded | General Purpose, Instrumentation, Marine, Medical | Panel Mount, Right Angle, Through Hole | UL94 V-0 | Keyed | 65 °C | -40 °C | Copper Alloy | Elastomer | Receptacle, Female Sockets | 2 A | Bulkhead - Front Side Nut | 250 VAC | Plastic | Gold | 13 | Black |
Switchcraft Inc. EN3P13FRAPCBN | Circuit Board, Solder | Bayonet Lock | IP66/IP68 | Unshielded | General Purpose, Instrumentation, Marine, Medical | Panel Mount, Right Angle, Through Hole | UL94 V-0 | Keyed | 65 °C | -40 °C | Copper Alloy | Elastomer | Receptacle, Female Sockets | 2 A | Bulkhead - Front Side Nut | 250 VAC | Plastic | Gold | 13 | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.57 | |
| 10 | $ 18.98 | |||
| 25 | $ 18.36 | |||
Description
General part information
EN3P13 Series
13 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder
