EN3P13FRAPCBN

Active

Switchcraft Inc.

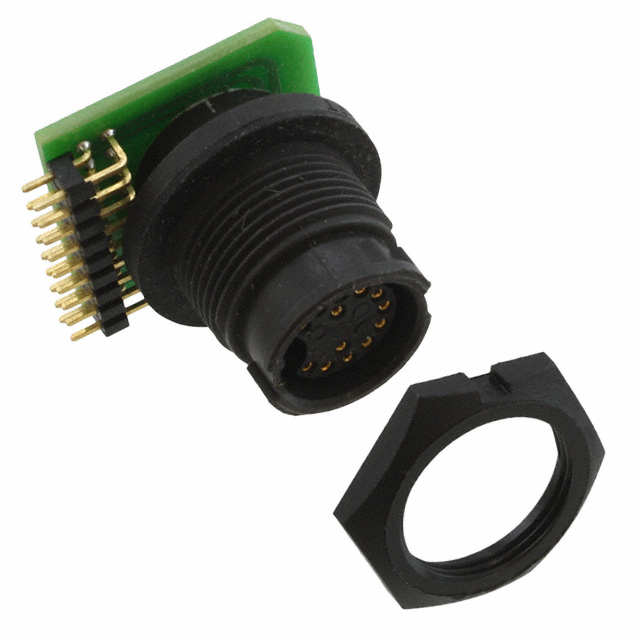

CONN RCPT FMALE 13POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P13FRAPCBN

Active

Switchcraft Inc.

CONN RCPT FMALE 13POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P13FRAPCBN	EN3P13 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	13	13
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

EN3P13 Series

CONN RCPT MALE 13POS GOLD SOLDER

Part	Termination	Fastening Type	Ingress Protection	Shielding	Applications	Mounting Type	Material Flammability Rating	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insert Material	Connector Type	Current Rating (Amps)	Mounting Feature	Voltage Rating	Primary Material	Contact Finish - Mating	Number of Positions	Color
Switchcraft Inc. EN3P13MRAPCBN	Circuit Board, Solder	Bayonet Lock	IP66/IP68	Unshielded	General Purpose, Instrumentation, Marine, Medical	Panel Mount, Right Angle, Through Hole	UL94 V-0	Keyed	65 °C	-40 °C	Copper Alloy	Elastomer	Male Pins, Receptacle	2 A	Bulkhead - Front Side Nut	250 VAC	Plastic	Gold	13	Black
Switchcraft Inc. EN3P13M26SX		Bayonet Lock	IP66/IP68	Unshielded	General Purpose, Instrumentation, Marine, Medical		UL94 V-0	Keyed	65 °C	-40 °C	Copper Alloy	Elastomer	Male Pins, Receptacle	3 A	Bulkhead - Front Side Nut	250 VAC	Plastic	Gold	13	Black
Switchcraft Inc. EN3P13F26SX		Bayonet Lock	IP66/IP68	Unshielded	General Purpose, Instrumentation, Marine, Medical		UL94 V-0	Keyed	65 °C	-40 °C	Copper Alloy	Elastomer	Receptacle, Female Sockets	3 A	Bulkhead - Front Side Nut	250 VAC	Plastic	Gold	13	Black
Switchcraft Inc. EN3P13FRAPCBW	Circuit Board, Solder	Bayonet Lock	IP66/IP68	Unshielded	General Purpose, Instrumentation, Marine, Medical	Panel Mount, Right Angle, Through Hole	UL94 V-0	Keyed	65 °C	-40 °C	Copper Alloy	Elastomer	Receptacle, Female Sockets	2 A	Bulkhead - Front Side Nut	250 VAC	Plastic	Gold	13	Black
Switchcraft Inc. EN3P13FRAPCBN	Circuit Board, Solder	Bayonet Lock	IP66/IP68	Unshielded	General Purpose, Instrumentation, Marine, Medical	Panel Mount, Right Angle, Through Hole	UL94 V-0	Keyed	65 °C	-40 °C	Copper Alloy	Elastomer	Receptacle, Female Sockets	2 A	Bulkhead - Front Side Nut	250 VAC	Plastic	Gold	13	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.00
		10	$ 20.87
		25	$ 20.40

Description

General part information

EN3P13 Series

13 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder
