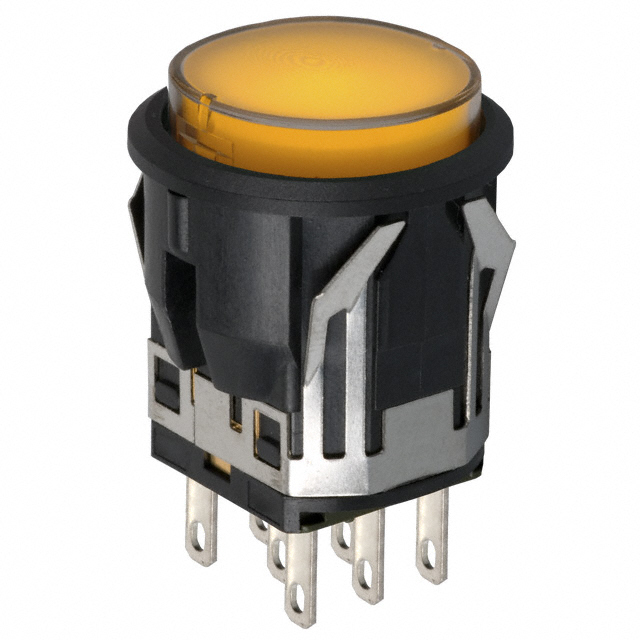

LB26CKW01-5D-JD

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLB Snap-In PB Series Datasheet

LB26CKW01-5D-JD

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

DocumentsLB Snap-In PB Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB26CKW01-5D-JD

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB26CKW01 Series

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Termination Style	Termination Style	Termination Style	Voltage Rating - DC	Actuator Type	Mechanical Life	Actuator Marking	Circuit	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Switch Function	Current Rating (Amps)	Electrical Life	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches LB26CKW01-C	22 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	30 V	Button Round	200000 Cycles	No Marking	DPDT	Panel Mount Snap-In	Standard	70 °C	-25 °C	Red	On-On	3 A	100000 Cycles
NKK Switches LB26CKW01-5D05-JD	22 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	30 V	Button Round	200000 Cycles	No Marking	DPDT	Panel Mount Snap-In	Illuminated Standard	50 °C	-25 °C	Clear	On-On	3 A	100000 Cycles	Amber LED	5 VDC
NKK Switches LB26CKW01-5C12-JC	22 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	30 V	Button Round	200000 Cycles	No Marking	DPDT	Panel Mount Snap-In	Illuminated Standard	50 °C	-25 °C	Clear (Red Filter/Diffuser)	On-On	3 A	100000 Cycles	LED Red	12 VDC
NKK Switches LB26CKW01-5D-JD	22 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	30 V	Button Round	200000 Cycles	No Marking	DPDT	Panel Mount Snap-In	Illuminated Standard	50 °C	-25 °C	Clear	On-On	3 A	100000 Cycles	Amber LED	2 VDC
NKK Switches LB26CKW01-6G-JB	22 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	30 V	Button Round	200000 Cycles	No Marking	DPDT	Panel Mount Snap-In	Illuminated Standard	50 °C	-25 °C	Clear	On-On	3 A	100000 Cycles	Blue LED	3.6 VDC
NKK Switches LB26CKW01-5C24-JC	22 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	30 V	Button Round	200000 Cycles	No Marking	DPDT	Panel Mount Snap-In	Illuminated Standard	50 °C	-25 °C	Clear (Red Filter/Diffuser)	On-On	3 A	100000 Cycles	LED Red	24 V
NKK Switches LB26CKW01-5D24-JD	22 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	30 V	Button Round	200000 Cycles	No Marking	DPDT	Panel Mount Snap-In	Illuminated Standard	50 °C	-25 °C	Clear	On-On	3 A	100000 Cycles	Amber LED	24 V
NKK Switches LB26CKW01-A	22 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	30 V	Button Round	200000 Cycles	No Marking	DPDT	Panel Mount Snap-In	Standard	70 °C	-25 °C	Black	On-On	3 A	100000 Cycles
NKK Switches LB26CKW01-1F-A	22 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	30 V	Button Round	200000 Cycles	No Marking	DPDT	Panel Mount Snap-In	Illuminated Standard	50 °C	-25 °C	Black	On-On	3 A	100000 Cycles	Green LED	2.1 VDC
NKK Switches LB26CKW01-5F24-JB	22 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	30 V	Button Round	200000 Cycles	No Marking	DPDT	Panel Mount Snap-In	Illuminated Standard	50 °C	-25 °C	Clear	On-On	3 A	100000 Cycles	Green LED	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.98
Newark	Each	1	$ 36.99
		5	$ 35.13
		10	$ 32.56
		25	$ 29.71
		50	$ 25.71
		100	$ 23.99
		250	$ 21.85

Description

General part information

LB26CKW01 Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In

Documents

Technical documentation and resources

LB Snap-In PB Series

Datasheet
