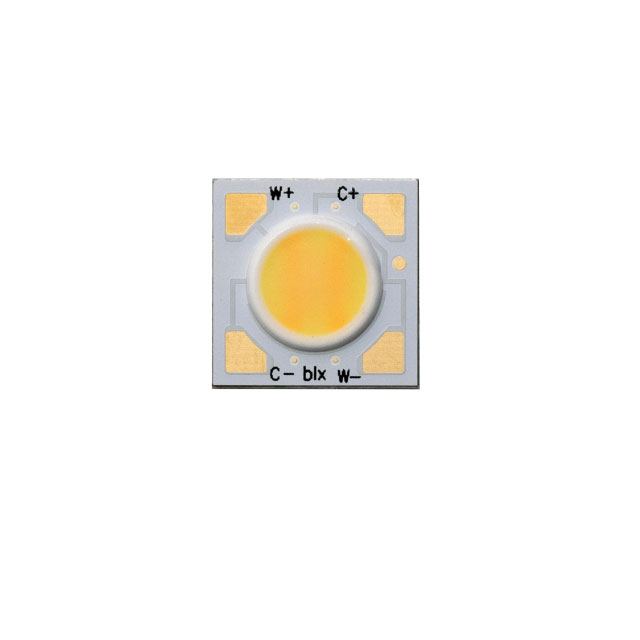

BXRV-TR-2765G-06A0-B-23

Active

BRIDGELUX

COB LED, WHITE, 128LM/W, 6500K, 92CRI ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BXRV-TR-2765G-06A0-B-23

Active

BRIDGELUX

COB LED, WHITE, 128LM/W, 6500K, 92CRI ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRV-TR-2765G-06A0-B-23	BXRV-TR-27 Series

CCT (K)	6500 K, 2700 K	2700 - 6500 K
CCT (K)	-	5000 - 6500 K
CCT (K)	-	2700 K
CCT (K)	-	3-Step MacAdam Ellipse
Color	White, Cool, White, Warm	White, Cool, White, Warm, Cool, White, Warm
Configuration	Square	Square, Round
CRI (Color Rendering Index)	90	90 - 95
Current - Max [Max]	480 mA	1.4 - 950 A
Current - Test	250 mA	1.05 - 900 A
Features	-	With Holder
Height [z]	1.65 mm	1.39 - 3.8 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	10 mm	6.8 - 29.6 mm
Lumens/Watt @ Current - Test	-	83.5 - 137 lm/W
Luminous Flux @ Current/Temperature	-	485 - 7043 lm
Size / Dimension	-	30.8 - 36.2 mm
Size / Dimension [x]	15.9 mm	12.5 - 32.05 mm
Size / Dimension [y]	15.9 mm	12.5 - 32.05 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB), LED Module
Viewing Angle	130 °	130 °
Voltage - Forward (Vf) (Typ)	-	17.6 - 53 V

BXRV-TR-27 Series

LED COB GEN2 VESTA WHT SQ 3850K

Part	Luminous Flux @ Current/Temperature	Current - Max [Max]	Configuration	Lens Type	Current - Test	Color	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Type	CCT (K) [Max]	CCT (K)	CCT (K) [Min]	CRI (Color Rendering Index)	Features	Size / Dimension [diameter]	CCT (K)	Temperature - Test
BRIDGELUX BXRV-TR-2750G-1KA0-A-25	6878 lm	1.8 A	Square	Flat	1.05 A	White, Cool, White, Warm	130 °	32.05 mm	32.05 mm	1.65 mm	29.6 mm	52.4 V	125 lm/W	Chip On Board (COB)	5000 K	3850 K	2700 K	90
BRIDGELUX BXRV-TR-2750G-65A0-A-26	5963 lm	1.4 A	Square	Flat	900 mA	White, Cool, White, Warm	130 °	28 mm	28 mm	1.65 mm	23.1 mm	53 V	125 lm/W	Chip On Board (COB)		3850 K		90
BRIDGELUX BXRV-TR-2750G-10A0-A-23-S2	891 lm, 1038 lm	700 mA	Round	Flat	500 mA	White, Cool, White, Warm	130 °			3.8 mm	10.3 mm		111 lm/W, 126 lm/W	Chip On Board (COB)		2700 K, 5000 K		90	With Holder	36.2 mm
BRIDGELUX BXRV-TR-2765G-40A0-A-26	4026 lm	1.4 A	Square	Flat	900 mA	White, Cool, White, Warm	130 °	24 mm	24 mm	1.65 mm	19.7 mm	35.3 V	127 lm/W	Chip On Board (COB)	6500 K	4600 K	2700 K	90
BRIDGELUX BXRV-TR-2750G-65A0-A-25	5963 lm	1.4 A	Square	Flat	900 mA	White, Cool, White, Warm	130 °	28 mm	28 mm	1.65 mm	23.1 mm	53 V	125 lm/W	Chip On Board (COB)	5000 K	3850 K	2700 K	90
BRIDGELUX BXRV-TR-2765G-20A0-A-23	2312 lm	700 mA	Square	Flat	500 mA	White, Cool, White, Warm	130 °	18.8 mm	18.8 mm	1.65 mm	14.25 mm	35.9 V	129 lm/W	Chip On Board (COB)	6500 K	4600 K	2700 K	90			3-Step MacAdam Ellipse
BRIDGELUX BXRV-TR-2750G-06A0-B-23-S2	500 lm, 600 lm	200 mA	Round	Flat	150 mA	White, Cool, White, Warm	130 °			3.8 mm	6.8 mm	36 V, 36 V	92 lm/W, 110 lm/W	Chip On Board (COB)		2700 K, 5000 K		90	With Holder	30.8 mm
BRIDGELUX BXRV-TR-2750G-20A0-A-26	2220 lm	700 mA	Square	Flat	500 mA	White, Cool, White, Warm	130 °	18.8 mm	18.8 mm	1.65 mm	14.2 mm	36.9 V		Chip On Board (COB)		3850 K		90
BRIDGELUX BXRV-TR-2750G-1000-B-33		250 mA	Square	Flat		Cool, White		15.8 mm	15.8 mm	1.7 mm	9.4 mm	30.76 V	90.8 lm/W	LED Module		5000 K		90				85 °C
BRIDGELUX BXRV-TR-2765S-20A0-A-23-S2	1550 lm, 1801 lm	700 mA	Round	Flat	500 mA	White, Cool, White, Warm	130 °			3.8 mm	14.3 mm	35.2 V, 36.3 V	98 lm/W, 110 lm/W	Chip On Board (COB)		2700 K, 6500 K		95	With Holder	36.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.81
		10	$ 2.69
		100	$ 2.21
		1000	$ 1.71
		5000	$ 1.60
Newark	Each	1	$ 4.73
		10	$ 3.65
		25	$ 3.45
		80	$ 3.23
		120	$ 3.02
		280	$ 2.88
		520	$ 2.74

Description

General part information

BXRV-TR-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Vesta™ White, Warm / White, Cool Square
