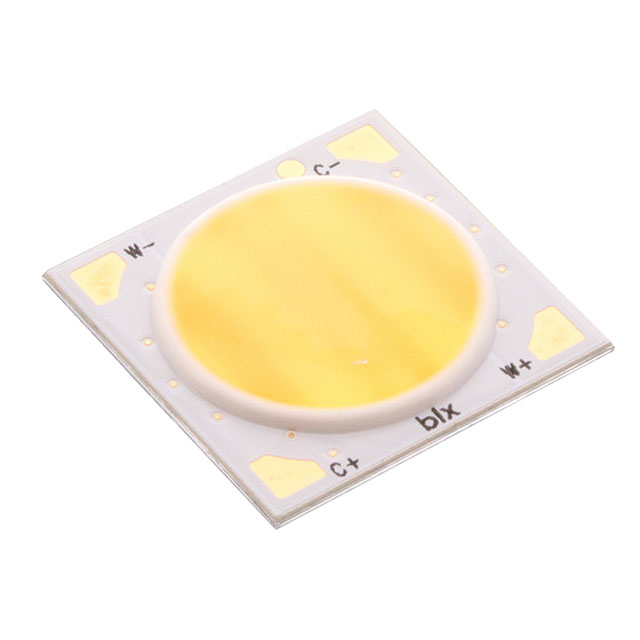

BXRV-TR-2765G-20A0-A-23

Active

BRIDGELUX

LED COB VESTA WHITE SQUARE 4600K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.45
		50	$ 5.25
		100	$ 5.22

Description

General part information

BXRV-TR-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Vesta™ White, Warm / White, Cool Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRV-TR-2765G-20A0-A-23	BXRV-TR-27 Series

CCT (K)	3-Step MacAdam Ellipse	3-Step MacAdam Ellipse
CCT (K)	4600 K	2700 - 6500 K
CCT (K) [Max]	6500 K	5000 - 6500 K
CCT (K) [Min]	2700 K	2700 K
Color	White, Cool, White, Warm	White, Cool, White, Warm, Cool, White, Warm
Configuration	Square	Square, Round
CRI (Color Rendering Index)	90	90 - 95
Current - Max [Max]	700 mA	1.4 - 950 A
Current - Test	500 mA	1.05 - 900 A
Features	-	With Holder
Height [z]	1.65 mm	1.39 - 3.8 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	14.25 mm	6.8 - 29.6 mm
Lumens/Watt @ Current - Test	129 lm/W	83.5 - 137 lm/W
Luminous Flux @ Current/Temperature	2312 lm	485 - 7043 lm
Size / Dimension	-	30.8 - 36.2 mm
Size / Dimension [x]	18.8 mm	12.5 - 32.05 mm
Size / Dimension [y]	18.8 mm	12.5 - 32.05 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB), LED Module
Viewing Angle	130 °	130 °
Voltage - Forward (Vf) (Typ)	35.9 V	17.6 - 53 V

BXRV-TR-27 Series

LED COB GEN2 VESTA WHT SQ 3850K

Part	Luminous Flux @ Current/Temperature	Current - Max [Max]	Configuration	Lens Type	Current - Test	Color	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Type	CCT (K) [Max]	CCT (K)	CCT (K) [Min]	CRI (Color Rendering Index)	Features	Size / Dimension [diameter]	CCT (K)	Temperature - Test
BRIDGELUX BXRV-TR-2750G-1KA0-A-25	6878 lm	1.8 A	Square	Flat	1.05 A	White, Cool, White, Warm	130 °	32.05 mm	32.05 mm	1.65 mm	29.6 mm	52.4 V	125 lm/W	Chip On Board (COB)	5000 K	3850 K	2700 K	90
BRIDGELUX BXRV-TR-2750G-65A0-A-26	5963 lm	1.4 A	Square	Flat	900 mA	White, Cool, White, Warm	130 °	28 mm	28 mm	1.65 mm	23.1 mm	53 V	125 lm/W	Chip On Board (COB)		3850 K		90
BRIDGELUX BXRV-TR-2750G-10A0-A-23-S2	891 lm, 1038 lm	700 mA	Round	Flat	500 mA	White, Cool, White, Warm	130 °			3.8 mm	10.3 mm		111 lm/W, 126 lm/W	Chip On Board (COB)		2700 K, 5000 K		90	With Holder	36.2 mm
BRIDGELUX BXRV-TR-2765G-40A0-A-26	4026 lm	1.4 A	Square	Flat	900 mA	White, Cool, White, Warm	130 °	24 mm	24 mm	1.65 mm	19.7 mm	35.3 V	127 lm/W	Chip On Board (COB)	6500 K	4600 K	2700 K	90
BRIDGELUX BXRV-TR-2750G-65A0-A-25	5963 lm	1.4 A	Square	Flat	900 mA	White, Cool, White, Warm	130 °	28 mm	28 mm	1.65 mm	23.1 mm	53 V	125 lm/W	Chip On Board (COB)	5000 K	3850 K	2700 K	90
BRIDGELUX BXRV-TR-2765G-20A0-A-23	2312 lm	700 mA	Square	Flat	500 mA	White, Cool, White, Warm	130 °	18.8 mm	18.8 mm	1.65 mm	14.25 mm	35.9 V	129 lm/W	Chip On Board (COB)	6500 K	4600 K	2700 K	90			3-Step MacAdam Ellipse
BRIDGELUX BXRV-TR-2750G-06A0-B-23-S2	500 lm, 600 lm	200 mA	Round	Flat	150 mA	White, Cool, White, Warm	130 °			3.8 mm	6.8 mm	36 V, 36 V	92 lm/W, 110 lm/W	Chip On Board (COB)		2700 K, 5000 K		90	With Holder	30.8 mm
BRIDGELUX BXRV-TR-2750G-20A0-A-26	2220 lm	700 mA	Square	Flat	500 mA	White, Cool, White, Warm	130 °	18.8 mm	18.8 mm	1.65 mm	14.2 mm	36.9 V		Chip On Board (COB)		3850 K		90
BRIDGELUX BXRV-TR-2750G-1000-B-33		250 mA	Square	Flat		Cool, White		15.8 mm	15.8 mm	1.7 mm	9.4 mm	30.76 V	90.8 lm/W	LED Module		5000 K		90				85 °C
BRIDGELUX BXRV-TR-2765S-20A0-A-23-S2	1550 lm, 1801 lm	700 mA	Round	Flat	500 mA	White, Cool, White, Warm	130 °			3.8 mm	14.3 mm	35.2 V, 36.3 V	98 lm/W, 110 lm/W	Chip On Board (COB)		2700 K, 6500 K		95	With Holder	36.2 mm
