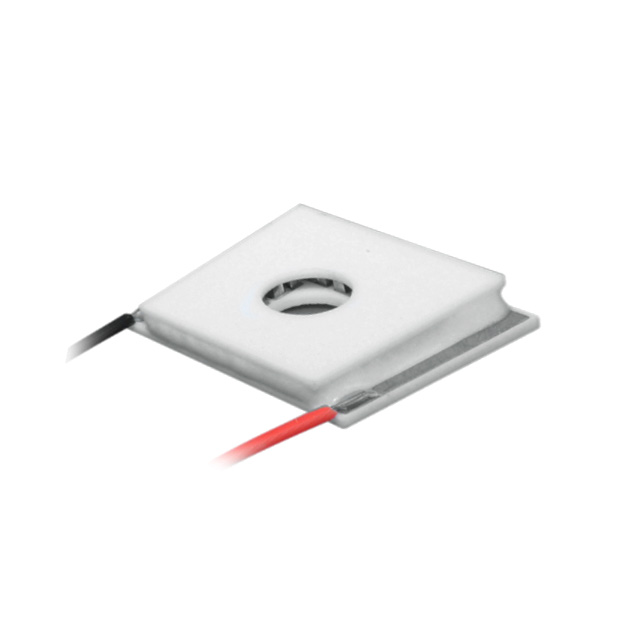

Specification	NL1507-03AC

Current - Max	1.8 A
Delta Tmax	64 °C
Features	Lead Wires, Lapped
Height	2.43 mm
Maximum Power Dissipation (Qmax)	5.4 W
Number of Stages	1
Operating Temperature	85 °C
Resistance	2.3 Ohms
Size / Dimension Length	14.33 mm
Size / Dimension Shape	Rectangular
Size / Dimension Width	11.28 mm
Type	TEC (Thermoelectric Cooler)
Voltage - Max	4.7 V

NL1507 Series

Part	Type	Maximum Power Dissipation (Qmax)	Height	Operating Temperature	Size / Dimension Shape	Size / Dimension Width	Size / Dimension Length	Features	Current - Max	Resistance	Voltage - Max	Delta Tmax	Number of Stages
Marlow Industries, Inc. NL1507-03AC	TEC (Thermoelectric Cooler)	5.4 W	2.43 mm	85 °C	Rectangular	11.28 mm	14.33 mm	Lapped Lead Wires	1.8 A	2.3 Ohms	4.7 V	64 °C	1
