9228-0-00-15-00-00-38-0
ActiveMill-Max Manufacturing Corp.

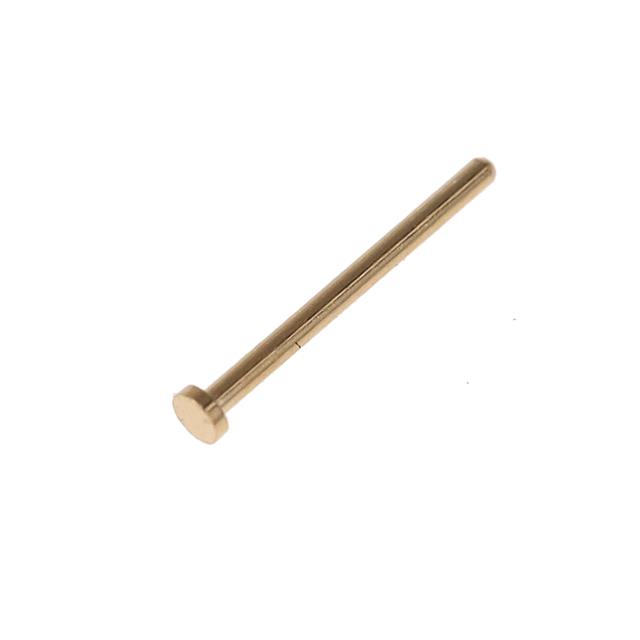

9228 NAIL HEAD PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9228-0-00-15-00-00-38-0
ActiveMill-Max Manufacturing Corp.
9228 NAIL HEAD PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9228-0-00-15-00-00-38-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.078 in |
| Flange Diameter [diameter] | 1.98 mm |
| Insulation | Non-Insulated |
| Length - Overall | 0.54 in |
| Length - Overall | 13.72 mm |
| Mounting Hole Diameter [diameter] | 1.12 mm |
| Mounting Hole Diameter [diameter] | 0.044 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Single End, Nail Head |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.96 | |
| 10 | $ 0.81 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.59 | |||
| 2500 | $ 0.55 | |||
Description
General part information
9228-0 Series
PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
